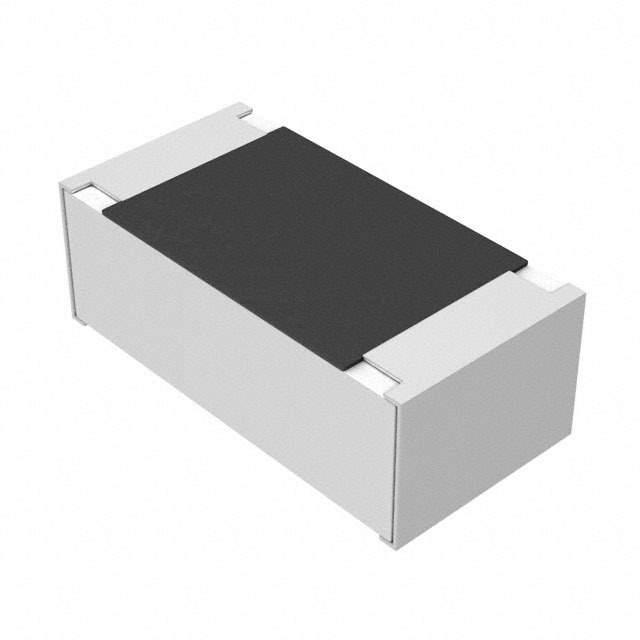

ERA-2AED101X Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Resistance 100 Ohms
Tolerance ±0.5%
Power (Watts) 0.063W, 1/16W
Composition Thin Film
Features Automotive AEC-Q200
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 0402 (1005 Metric)
Supplier Device Package 0402
Ratings AEC-Q200
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.016" (0.40mm)
Number of Terminations 2
Base Product Number ERA-2AE
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number ERA2AED101X,P100DEDKR,P100DETR,P100DECT
Standard Package 10,000
Win Source Part Number 1329061-ERA-2AED101X
Ultra Librarian 3D Model Ultra Librarian ERA-2AED101X CAD Model

Description

The Panasonic Electronic Components 1329061-ERA-2AED101X is a chip resistor-surface mount with a packaging of reel-TR and a standard package of 10,000.

  • Size/Dimension: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Height-Seated (Max): 0.016" (0.40mm)
  • Tolerance: ±0.5%
  • Temperature Coefficient: ±25ppm/°C
  • Power (watts): 0.063W, 1/16W
  • Composition: Thin Film
  • Terminations: 2
  • Resistance: 100 Ohms
  • Operating Temperature: -55°C ~ 155°C
  • AEC-Q200: Yes
  • Case/Package: 0402 (1005 Metric)
  • Supplier Device Package: 0402
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
