Same model may have multiple batches, images only for reference.

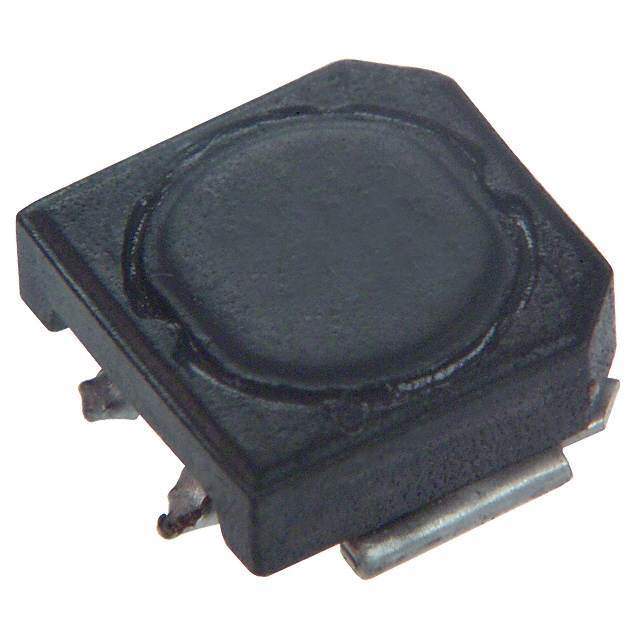

ELL-6RH5R1M Real Image
Same model may have multiple batches, images only for reference.

ELL-6RH5R1M

Part No ELL-6RH5R1M
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 5.1UH 1.55A 56 MOHM / Power Choke Shielded Wirewound 5.1uH 20% 100KHz 1.55A 0.056Ohm DCR T/R
Datasheet
ELL-6RH5R1M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Panasonic Electronic Components
Series H
Packaging Reel package
Type Wirewound
Inductance 5.1μH
Tolerance ±20%
Current Rating 1.55A
Shielding Shielded
DC Resistance (DCR) 56 mOhm
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.251" L x 0.236" W (6.40mm x 6.00mm)
Height - Seated (Maximum) 0.110" (2.80mm)
Win Source Part Number 773767-ELL-6RH5R1M
Popularity Medium
Supply and Demand Status Limited
Family Name ELL6RH
Introduction Date June 10, 2006
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian ELL-6RH5R1M CAD Model

Description

The Panasonic Electronic Components wirewound inductor is a high-quality component.

  • Series: ELL6RH
  • Current Rating: 1.55A
  • Shielding: Shielded
  • Inductance: 5.1μH
  • Tolerance: ±20%
  • DC Resistance (DCR): 56 mOhm
  • Dimension: 0.251" L x 0.236" W (6.40mm x 6.00mm)
  • Mounting Style: SMD
  • Height - seated (maximum): 0.110" (2.80mm)
  • Alternative Parts (Cross-Reference): HM66A-06305R0NLF13, CT920CYF-4R7N, VLC6020T-4R7N, CSDB5D28M5R0T
