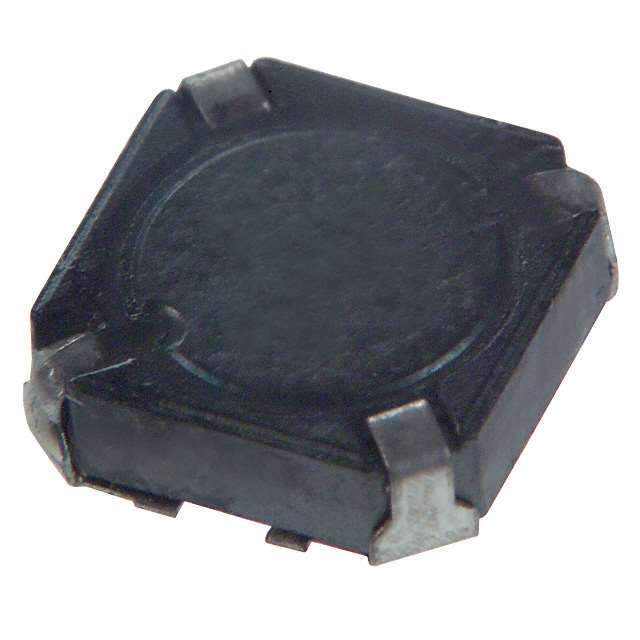

ELL-6PM101M Real Image
Same model may have multiple batches, images only for reference.

ELL-6PM101M

Part No ELL-6PM101M
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 100UH 320MA 970MOHM SM / 100 µH Shielded Wirewound Inductor 320 mA 970mOhm Nonstandard
Datasheet
ELL-6PM101M Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Panasonic Electronic Components
Series M
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Obsolete
Type Wirewound
Inductance 100 µH
Tolerance ±20%
Current Rating (Amps) 320 mA
Shielding Shielded
DC Resistance (DCR) 970mOhm
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) 0.079" (2.00mm)
Base Product Number ELL-6PM
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names PCD1716TR-NDR,ELL6PM101M,PCD1716CT,PCD1716CT-NDR,PCD1716TR
Standard Package 1,000
Win Source Part Number 992306-ELL-6PM101M
Ultra Librarian 3D Model Ultra Librarian ELL-6PM101M CAD Model

Description

The ELL-6PM101M is a fixed inductor manufactured by Panasonic Electronic Components.

  • Product Status: Obsolete
  • Inductance: 100 μH
  • Current Rating: 320 mA
  • Type: Wirewound
  • Shielding: Shielded
  • Mounting: SMD (SMT)
  • Operating Temperature: -55°C to 125°C
