ELL-5GM5R6N
Same model may have multiple batches, images only for reference.

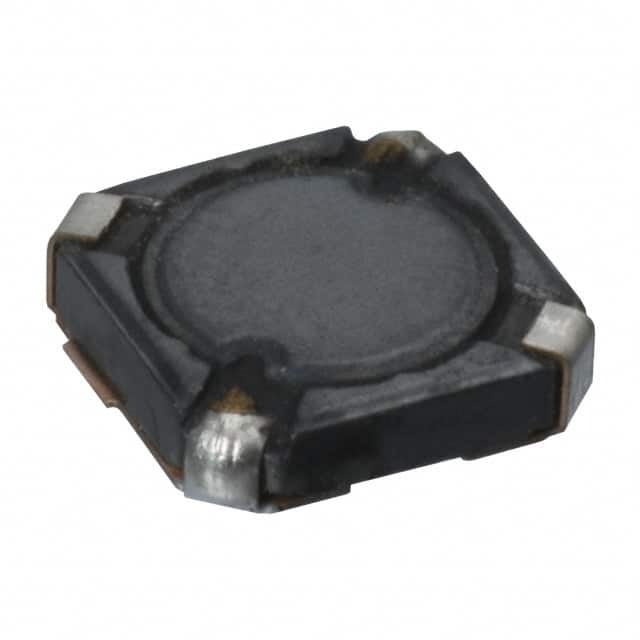

ELL-5GM5R6N

Part No ELL-5GM5R6N
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 5.6UH 1A 100 MOHM SMD
Datasheet
ELL-5GM5R6N Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Panasonic
Series M
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Obsolete
Type Wirewound
Inductance 5.6 µH
Tolerance ±30%
Current Rating (Amps) 1 A
Shielding Shielded
DC Resistance (DCR) 100mOhm
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.205" L x 0.205" W (5.20mm x 5.20mm)
Height - Seated (Max) 0.059" (1.50mm)
Base Product Number ELL-5GM
Standard Package 2,000 pcs
Moisture Sensitivity Level (MSL) 2 (1 Year)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 867983-ELL-5GM5R6N
Ultra Librarian 3D Model Ultra Librarian ELL-5GM5R6N CAD Model

Description

The Panasonic 867983-ELL-5GM5R6N is a fixed inductor from the M series.

  • Type: Wirewound
  • Package: Shielded
  • Inductance: 5.6 µH
  • Tolerance: ±30%
  • Length: 0.205"
  • Width: 0.205"
  • Seated Height: 0.059"
  • DC Resistance (DCR): 100mOhm
  • Current Rating: 1 A
  • Installation: Surface mount
  • Packaging Options: Tape & reel or cut tape
