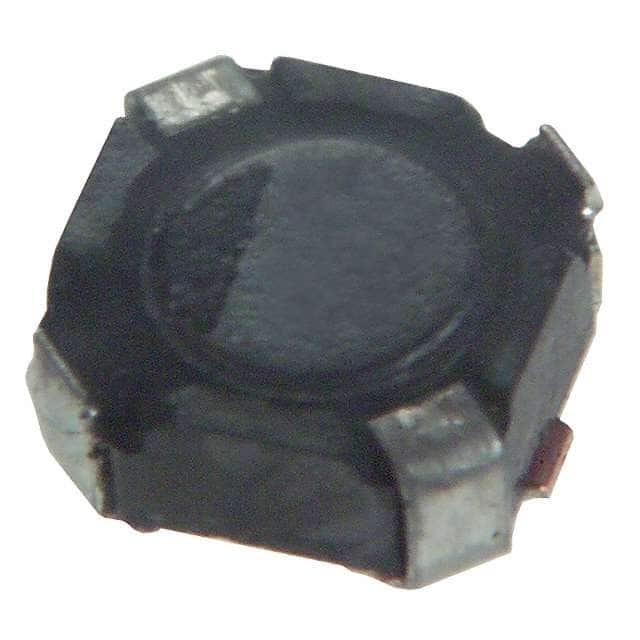

Same model may have multiple batches, images only for reference.
ELL-3GM2R2N
Same model may have multiple batches, images only for reference.

ELL-3GM2R2N

Part No ELL-3GM2R2N
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.1A 100MOHM SMD / 2.2 μH Shielded Wirewound Inductor 1.1 A 100mOhm Nonstandard
Datasheet
ELL-3GM2R2N Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Panasonic
Series M
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Obsolete
Type Wirewound
Inductance 2.2 µH
Tolerance ±30%
Current Rating (Amps) 1.1 A
Shielding Shielded
DC Resistance (DCR) 100mOhm
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.126" L x 0.126" W (3.20mm x 3.20mm)
Height - Seated (Max) 0.059" (1.50mm)
Base Product Number ELL-3GM
Standard Package 2,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 870366-ELL-3GM2R2N
Ultra Librarian 3D Model Ultra Librarian ELL-3GM2R2N CAD Model

Description

The Panasonic ELL-3GM2R2N is a wirewound fixed inductor with a shielding feature.

  • Size: 0.126" L x 0.126" W (3.20mm x 3.20mm)
  • Height: 0.059" (1.50mm)
  • Inductance: 2.2 µH
  • Tolerance: ±30%
  • DC Resistance (DCR): 100mOhm
  • Current Rating: 1.1 A
  • Mounting Type: Surface Mount
  • Package/Case: Nonstandard
