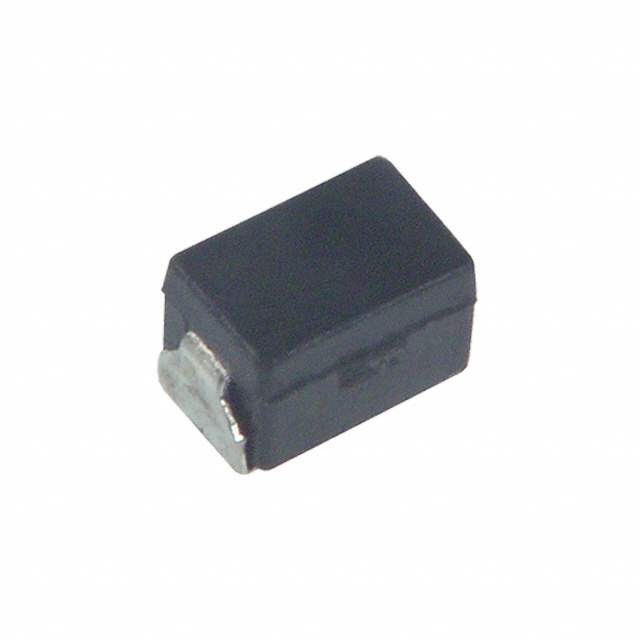

ELJ-PC330KF Real Image
Same model may have multiple batches, images only for reference.

ELJ-PC330KF

Part No ELJ-PC330KF
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 33UH 120MA 6.5 OHM SMD
Datasheet
ELJ-PC330KF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Wirewound
Inductance 33μH
Tolerance ±10%
Current Rating 120mA
DC Resistance (DCR) 6.5 Ohm Max
Q @ Freq 20 @ 2.52MHz
Frequency - Self Resonant 16MHz
Temperature Range - Operating -20°C to 85°C
Frequency - Test 2.52MHz
Mounting SMD (SMT)
Case / Package 1008 (2520 Metric)
Height - Seated (Max) 0.071" (1.80mm)
Win Source Part Number 127856-ELJ-PC330KF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ELJ-PC330KF CAD Model

Description

Product Overview

The ELJ-PC330KF is a high-quality inductor component designed to provide effective noise suppression and energy storage in electronic circuits. This product is ideal for a variety of applications due to its robust performance and compact design.

Features and Benefits

  • Compact Size: Allows for easy incorporation into space-constrained applications.
  • High Reliability: Offers a stable inductance value and low DC resistance for efficient performance.
  • Wide Application Range: Suitable for use in both analog and digital circuits.

Applications

  • Consumer Electronics
  • Power Supply Circuits
  • Signal Processing
