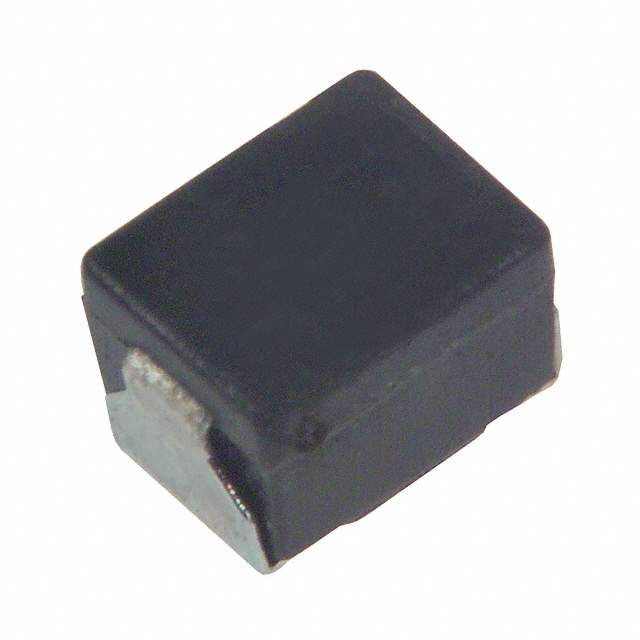

ELJ-NA3R3JF Real Image
Same model may have multiple batches, images only for reference.

ELJ-NA3R3JF

Part No ELJ-NA3R3JF
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 3.3UH 100MA 4.2 OHM
Datasheet
ELJ-NA3R3JF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Wirewound
Material - Core Non-Magnetic
Inductance 3.3μH
Tolerance ±5%
Current Rating 100mA
DC Resistance (DCR) 4.2 Ohm Max
Q @ Freq 13 @ 7.96MHz
Frequency - Self Resonant 62MHz
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.094" (2.40mm)
Win Source Part Number 119036-ELJ-NA3R3JF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ELJ-NA3R3JF CAD Model

Description

Product Overview

The ELJ-NA3R3JF chip inductor is crafted for excellence in performance and reliability, suitable for a range of electronic projects requiring precision.

Features and Benefits

  • Exceptional Inductance Accuracy: Ensures stable and efficient circuit operations.
  • Optimal Design: Keeps space requirements low without sacrificing functionality.
  • Highly Durable: Built to withstand challenging environments.

Applications

  • Frequency determination circuits
  • Telecommunication equipment
  • Microcontroller systems
  • Automotive electronics

Additional Details

The ELJ-NA3R3JF is compatible with a wide range of PCB designs, making it an ideal choice for innovation-driven projects.
