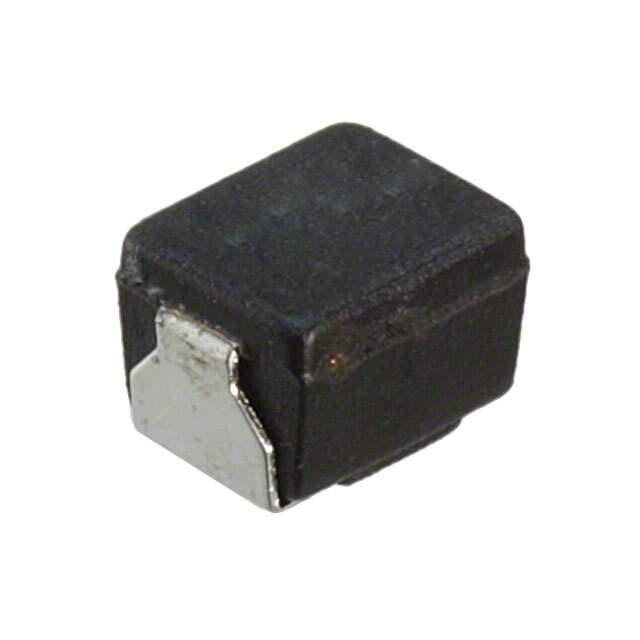

ELJ-LA470KF Real Image
Same model may have multiple batches, images only for reference.

ELJ-LA470KF

Part No ELJ-LA470KF
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 47UH 165MA 4.3 OHM SMD / 47 µH Unshielded Drum Core, Wirewound Inductor 165 mA 4.3Ohm 1210 (3225 Metric)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Panasonic Electronic Components
Series LA
Package Tape & Reel
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±10%
Current Rating (Amps) 165 mA
Current - Saturation (Isat) 300mA
Shielding Unshielded
DC Resistance (DCR) 4.3Ohm
Temperature Range - Operating -20°C ~ 85°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case 1210 (3225 Metric)
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.094" (2.40mm)
Base Product Number ELJ-LA
Standard Package 2,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1348118-ELJ-LA470KF
Ultra Librarian 3D Model Ultra Librarian ELJ-LA470KF CAD Model

Description

The Panasonic Electronic Components ELJ-LA series inductor is a drum core, wirewound type inductor with an unshielded structure.

  • Size: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Height: 0.094" (2.40mm)
  • Inductance: 47 µH
  • Tolerance: ±10%
  • DC Resistance (DCR): 4.3Ohm
  • Current Rating: 165 mA
  • Material: Ferrite
  • Mounting Type: Surface Mount
  • Temperature Range: -20°C to 85°C
  • Standard Package: 2,000
  • Status: Obsolete
