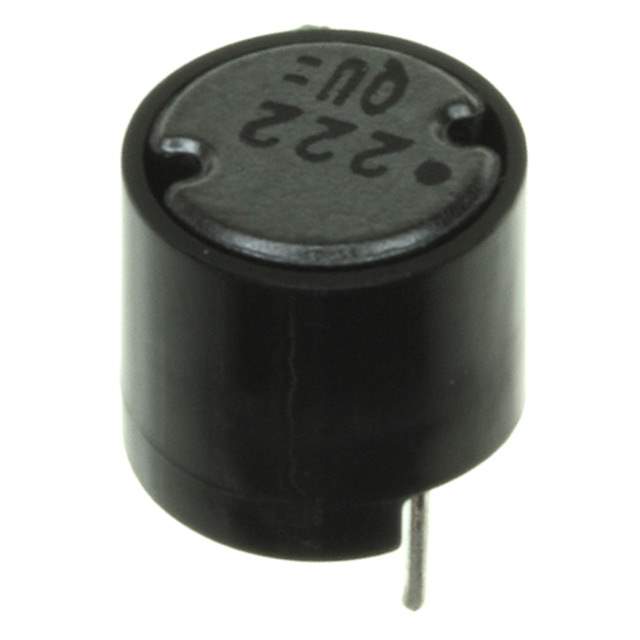

ELC09D222F Real Image
Same model may have multiple batches, images only for reference.

ELC09D222F

Part No ELC09D222F
Manufacturer Panasonic
Catalog Fixed Inductors
Description Ind Choke Coil Wirewound 2.2mH 10% 10KHz Ferrite 170mA RDL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package Radial
Core Material Ferrite
Current 100 mA
Current Rating 170 mA
DC Current 170 mA
DC Resistance (DCR) 4.4 Ω
Diameter 9.5 mm
Height 8.9 mm
Inductance 2.2 mH
Inductance Tolerance 10 %
Lead/Base Style Radial
Lead Diameter 600 µm
Lead Free Yes
Lead Pitch 5 mm
Max DC Current 170 mA
Military Standard Not
Mount Radial, Through Hole
Number of Pins 2
Packaging Tape & Reel
Radiation Hardening No
REACH SVHC No SVHC
Resistance 4.4 Ω
RMS Current (Irms) 170 mA
RoHS Compliant
Series Resistance 4.4 Ω
Shielding Unshielded
Termination Radial
Test Frequency 10 kHz
Tolerance 10 %
Win Source Part Number 994805-ELC09D222F
Categories Fixed Inductors
Manufacturer Panasonic
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian ELC09D222F CAD Model

Description

The ELC09D222F is a fixed inductor from Panasonic that is designed for use in SMD (SMT) mounting applications.

  • Termination: radial
  • Shielding: unshielded
  • Height: 8.9 mm
  • Diameter: 9.5 mm
  • Lead Pitch: 5 mm
  • Maximum DC Current: 170 mA
  • Resistance: 4.4 Ω
  • Tolerance: 10%
  • Test Frequency: 10 kHz
  • Category: fixed inductors
  • Packaging: tape and reel
  • Alternative Parts: RLB1314-222KL, SDR1005-222KL, AIUR-16-222K, AIAP-02-222K, and AIUR-10-222KELC-09D222F
  • Supply and Demand: shortage
