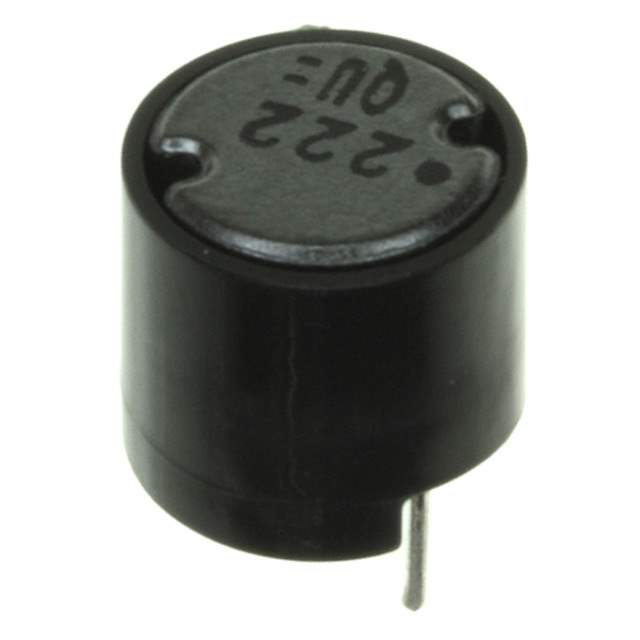

ELC-09D4R7F Real Image
Same model may have multiple batches, images only for reference.

ELC-09D4R7F

Part No ELC-09D4R7F
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 4.7UH 3A 18 MOHM TH / 4.7 µH Unshielded Wirewound Inductor 3 A 18mOhm Radial, Vertical Cylinder
Datasheet
ELC-09D4R7F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Panasonic Electronic Components
Series 09D
Package Bulk
Product Status Obsolete
Type Wirewound
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 3 A
Shielding Unshielded
DC Resistance (DCR) 18mOhm
Inductance Frequency - Test 10 kHz
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Size / Dimension 0.374" Dia (9.50mm)
Height - Seated (Max) 0.350" (8.90mm)
Base Product Number ELC-09
Standard Package 2,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1349234-ELC-09D4R7F
Ultra Librarian 3D Model Ultra Librarian ELC-09D4R7F CAD Model

Description

The ELC-09D4R7F is a fixed inductor that is used in various applications.

  • Inductor Type: Fixed
  • Series: 09D
  • Material - Core: Wirewound
  • Packaging: Bulk
  • Shielding: Unshielded
  • Size / Dimension: 0.374" Dia (9.50mm)
  • Inductance: 4.7 µH
  • Height - Seated (Max): 0.350" (8.90mm)
  • Standard Package: 2,000
  • Tolerance: ±20%
  • DC Resistance (DCR): 18mOhm
  • MSL Level: 1 (Unlimited)
  • Current Rating (Amps): 3A
  • Inductance Frequency - Test: 10kHz
  • HTSUS: 8504.50.8000
