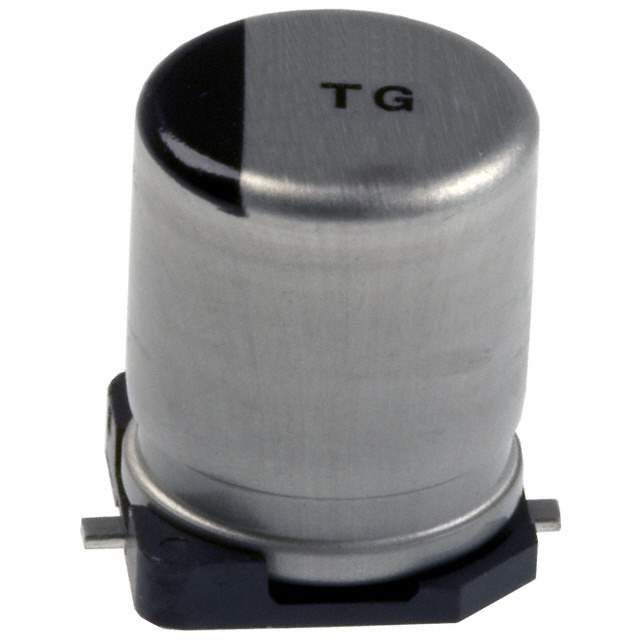

EEV-TG2A220UP

Name: EEV-TG2A220UP
Brand: Panasonic
SKU: 1336886
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEV-TG2A220UP
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 100V SMD / 22 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1.3Ohm @ 100kHz 2000 Hrs @ 125°C
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	TG
Package	Tape & Reel
Product Status	Obsolete
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	100 V
ESR (Equivalent Series Resistance)	1.3Ohm @ 100kHz
Lifetime @ Temp.	2000 Hrs @ 125°C
Temperature Range - Operating	-40°C ~ 125°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	45.5 mA @ 120 Hz
Ripple Current @ High Frequency	70 mA @ 100 kHz
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.402" (10.20mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Base Product Number	EEV-TG
Standard Package	500
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1336886-EEV-TG2A220UP
Ultra Librarian 3D Model	Ultra Librarian EEV-TG2A220UP CAD Model

Description

The Panasonic Electronic Components Capacitor is an aluminum electrolytic capacitor that is part of the TG series. Panasonic Electronic Components

Series: TG
Capacitance: 22 µF
Voltage Rating: 100 V
Tolerance: ±20%
Application: Automotive
Height: 0.402" (10.20mm)
Packaging: Tape & Reel
Package/Case: Radial, Can - SMD
Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
Temperature Range: -40°C ~ 125°C
Lifetime: 2000 Hrs @ 125°C
ESR: 1.3Ohm @ 100kHz
