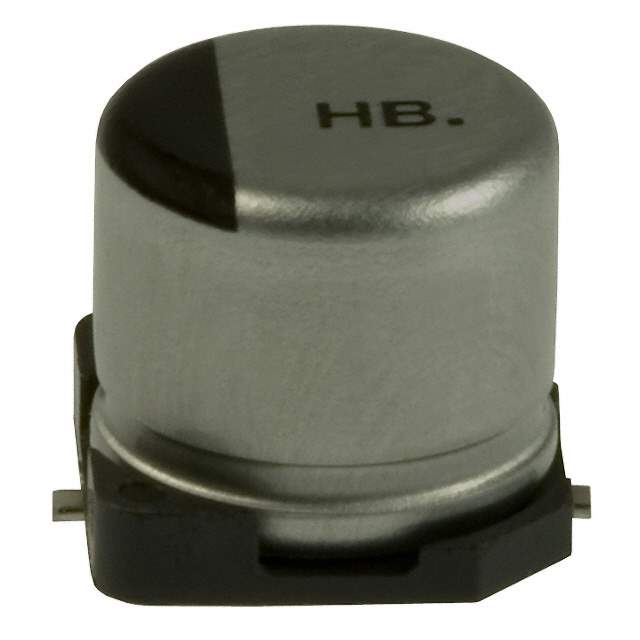

EEV-HB1H100P Real Image
Same model may have multiple batches, images only for reference.

EEV-HB1H100P

Part No EEV-HB1H100P
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 50V SMD
Datasheet
EEV-HB1H100P Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series Automotive, AEC-Q200, HB
Part Status Obsolete(EOL)
Capacitance 10μF
Tolerance ±20%
Voltage Rating 50V
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature Range -40°C ~ 105°C
Polarization Polar
Applications Automotive
Ripple Current - Low Frequency 35mA @ 120Hz
Dimension 0.248" Dia (6.30mm)
Height - Seated (Maximum) 0.228" (5.80mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 763079-EEV-HB1H100P
Popularity Medium
Supply and Demand Status Limited
Family Name HB
Introduction Date April 04, 2005
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian EEV-HB1H100P CAD Model

Description

The Panasonic Electronic Components 763079-EEV-HB1H100P is a radial, can-SMD capacitor from Panasonic Electronic Components.

  • Capacitance: 10μF
  • Voltage Rating: 50V
  • Series: HB
  • Application: Automotive
  • Tolerance: ±20%
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Operating Temperature: -40°C to 105°C
  • Lifetime: 2000 hours @ 105°C
  • Polarized: Yes
  • Diameter: 0.248" (6.30mm)
  • Obsolete (EOL): Yes
