Same model may have multiple batches, images only for reference.

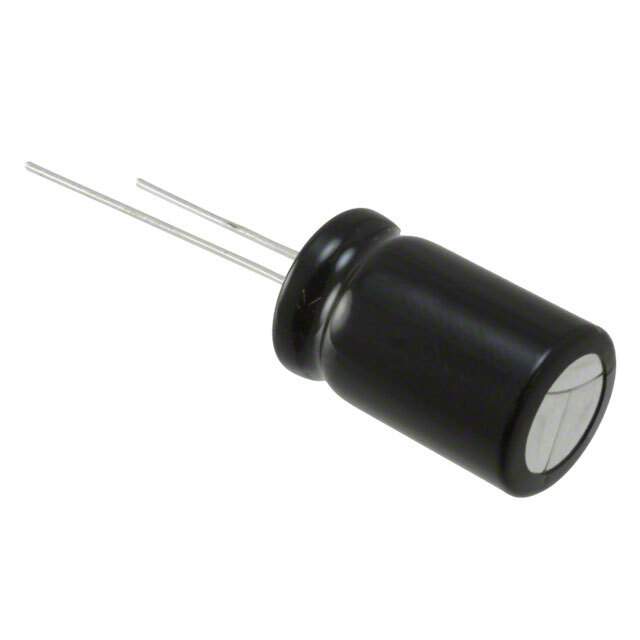

EEU-HD1V222 Real Image
Same model may have multiple batches, images only for reference.

EEU-HD1V222

Part No EEU-HD1V222
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 2200UF 20% 35V RADIAL / 2200 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Datasheet
EEU-HD1V222 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series HD
Package Bulk
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.26 A @ 120 Hz
Ripple Current @ High Frequency 1.449 A @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.063" (27.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number EEU-HD
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1337490-EEU-HD1V222
Ultra Librarian 3D Model Ultra Librarian EEU-HD1V222 CAD Model

Description

The Panasonic Electronic Components EEU-HD series is a high-quality aluminum electrolytic capacitor that offers a capacitance of 2200 µF and a voltage rating of 35 V.

  • Manufacturer: Panasonic Electronic Components
  • Series: EEU-HD
  • Capacitance: 2200 µF
  • Voltage Rating: 35 V
  • Tolerance: ±20%
  • Application: General Purpose
  • Polarization: Polarized
  • Package: Radial, Can-Shaped
  • Diameter: 0.492"
  • Height (Seated): 1.063"
  • Lead Spacing: 0.197"
  • Mounting Type: Through-Hole
  • ESR (Equivalent Series Resistance): -
  • Lifetime @ Temperature: 2000 hours @ 105°C
  • Operating Temperature: -55°C to 105°C
  • REACH: Unaffected
  • Ripple Current (Low Frequency): 1.26 A @ 120 Hz
  • Ripple Current (High Frequency): 1.449 A @ 100 kHz
