Same model may have multiple batches, images only for reference.

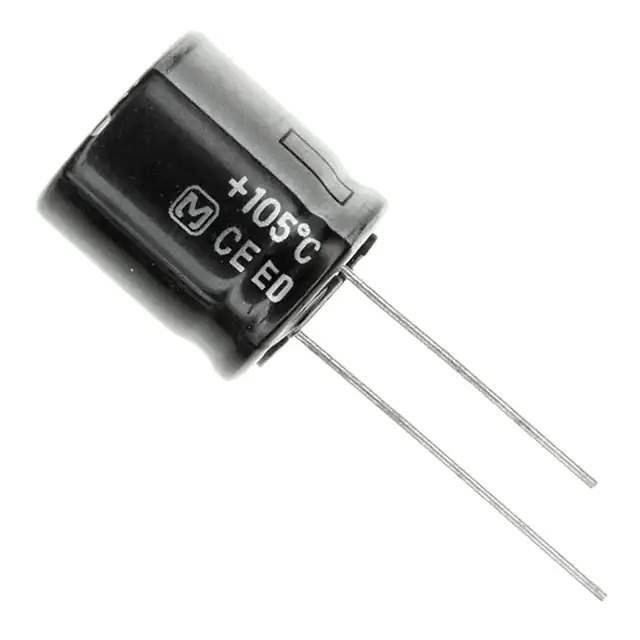

EEU-ED2G470SB Real Image
Same model may have multiple batches, images only for reference.

EEU-ED2G470SB

Part No EEU-ED2G470SB
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 400V RADIAL / 47 μF 400 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Panasonic
Series ED-A
Package Cut Tape (CT)Tape & Box (TB)
Product Status Active
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 400 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 336 mA @ 120 Hz
Ripple Current @ High Frequency 840 mA @ 100 kHz
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number EEU-ED
Standard Package 250 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 870177-EEU-ED2G470SB
Ultra Librarian 3D Model Ultra Librarian EEU-ED2G470SB CAD Model

Description

The 870177-EEU-ED2G470SB is an aluminum electrolytic capacitor from Panasonic's ED-A series.

  • Capacitance: 47µF
  • Voltage Rating: 400V
  • Size: 0.709 inches (18.00mm) in diameter and a height of 0.866 inches (22.00mm)
  • Application: Suitable for general-purpose applications
  • Polarization: Polarized
  • Lifetime: 10,000 hours @ a temperature of 105°C
  • Mounting: Through-hole mountable
  • Package: Radial, can package
  • Ripple Current: 336mA @ a low frequency of 120Hz and 840mA @ a high frequency of 100kHz
  • Product Status: Active product
  • Standard Package: 250 pieces.
