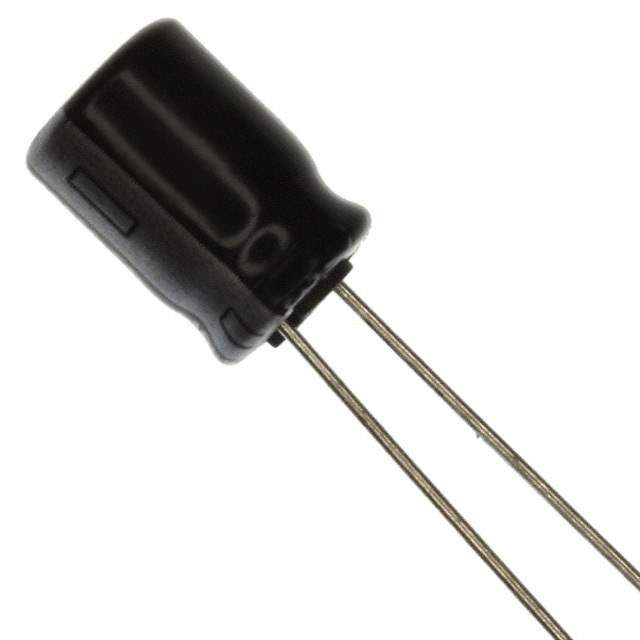

Same model may have multiple batches, images only for reference.

EEU-EB1H101S

Name: EEU-EB1H101S
Brand: Panasonic
SKU: 1020391
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EEU-EB1H101S
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 50V RADIAL / 100 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	EB-A
Package	Bulk
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	50 V
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	99 mA @ 120 Hz
Ripple Current @ High Frequency	128.7 mA @ 100 kHz
Lead Spacing	0.138" (3.50mm)
Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Base Product Number	EEU-EB
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	EEUEB1H101S,P13459
Standard Package	200
Win Source Part Number	1020391-EEU-EB1H101S
Ultra Librarian 3D Model	Ultra Librarian EEU-EB1H101S CAD Model

Alternative Products

Description

The Panasonic Electronic Components EEU-EB1H101S is an aluminum electrolytic capacitor with a capacitance of 100 µF and a voltage rating of 50 V.

Capacitance: 100 µF
Voltage Rating: 50 V
Tolerance: ±20%
Ripple Current @ Low Frequency: 99 mA @ 120 Hz
Ripple Current @ High Frequency: 128.7 mA @ 100 kHz
Lifetime @ Temp.: 5000 Hrs @ 105°C
Operating Temperature: -40°C ~ 105°C
