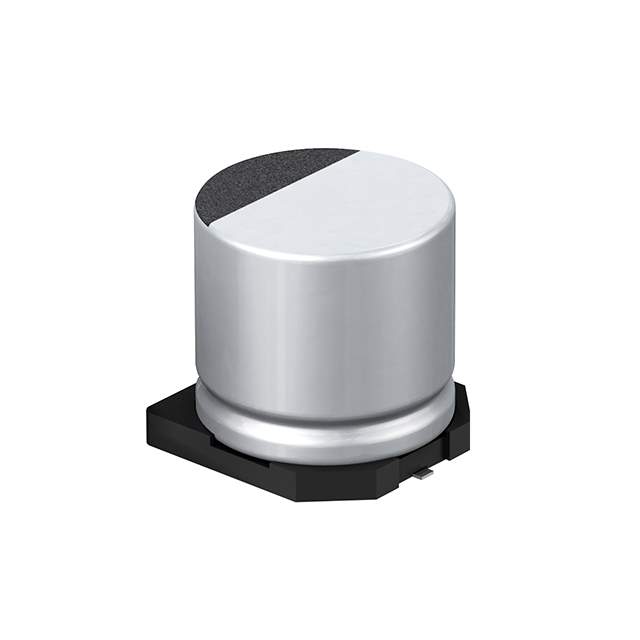

Same model may have multiple batches, images only for reference.

EEH-ZE1H101P

Name: EEH-ZE1H101P
Brand: Panasonic
SKU: 1337460
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEH-ZE1H101P
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 100UF 20% 50V SMD / 100 µF 50 V Aluminum - Polymer Capacitors Radial, Can - SMD 28mOhm 2000 Hrs @ 145°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	ZE
Package	Tape & Reel
Type	Hybrid
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	28mOhm
Lifetime @ Temp.	2000 Hrs @ 145°C
Temperature Range - Operating	-55°C ~ 145°C
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	120 mA @ 100 Hz
Ripple Current @ High Frequency	800 mA @ 100 kHz
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Base Product Number	EEH-ZE
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1337460-EEH-ZE1H101P
Ultra Librarian 3D Model	Ultra Librarian EEH-ZE1H101P CAD Model

Description

The ZE hybrid aluminum polymer capacitor is an ideal component for automotive applications.

Packaging: Tape & Reel (TR)
Size / Dimension: 0.394" Dia (10.00mm)
Capacitance: 100 µF
Tolerance: ±20%
Voltage - Rated: 50V
ESR (Equivalent Series Resistance): 28mOhm
Lifetime @ Temp.: 2000 Hrs @ 145°C
Ripple Current @ Low Frequency: 120 mA @ 100 Hz
Ripple Current @ High Frequency: 800 mA @ 100 kHz
Operating Temperature: -55°C ~ 145°C
Applications: Automotive
Rating: AEC-Q200
Package / Case: Radial, Can - SMD
