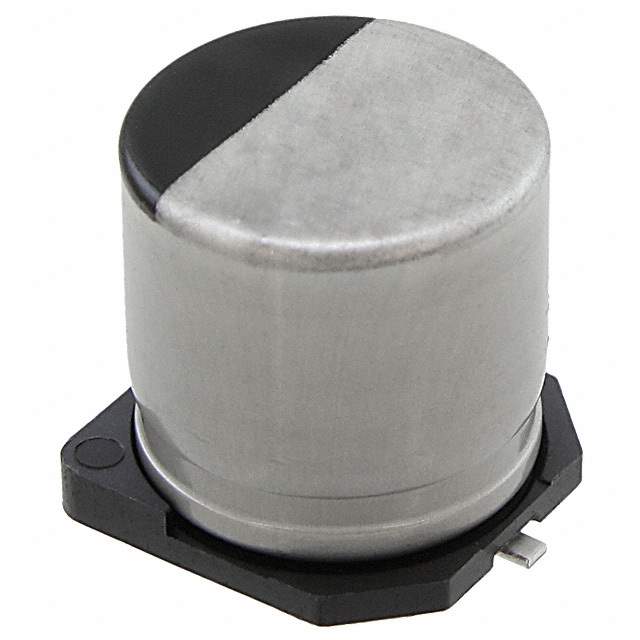

EEH-ZC1K330P Real Image
Same model may have multiple batches, images only for reference.

EEH-ZC1K330P

Part No EEH-ZC1K330P
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY HYB 33UF 80V SMD / 33 µF 80 V Aluminum - Polymer Capacitors Radial, Can - SMD 36mOhm 4000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Type Hybrid
Capacitance 33 µF
Tolerance ±20%
Voltage - Rated 80 V
ESR (Equivalent Series Resistance) 36mOhm
Lifetime @ Temp. 4000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 136 mA @ 100 Hz
Ripple Current @ High Frequency 1.36 A @ 100 kHz
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
Base Product Number EEH-ZC
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number P19319TR,EEHZC1K330P,P19319DKR,P19319CT
Standard Package 500
Win Source Part Number 1330855-EEH-ZC1K330P
Ultra Librarian 3D Model Ultra Librarian EEH-ZC1K330P CAD Model

Description

The EEH-ZC1K330P from Panasonic Electronic Components is a capacitor that is part of the Aluminum - Polymer Capacitors category.

  • Type: Hybrid
  • Packaging: Reel - TR
  • Application: Designed for automotive applications
  • Capacitance: 33 µF
  • Voltage Rating: 80 V
  • Compliance: ROHS3 compliant
  • Ripple Current: 136 mA @ 100 Hz and 1.36 A @ 100 kHz
  • Lifetime: 4000 Hrs @ 125°C
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • Win Source Part Number: 1330855-EEH-ZC1K330P
