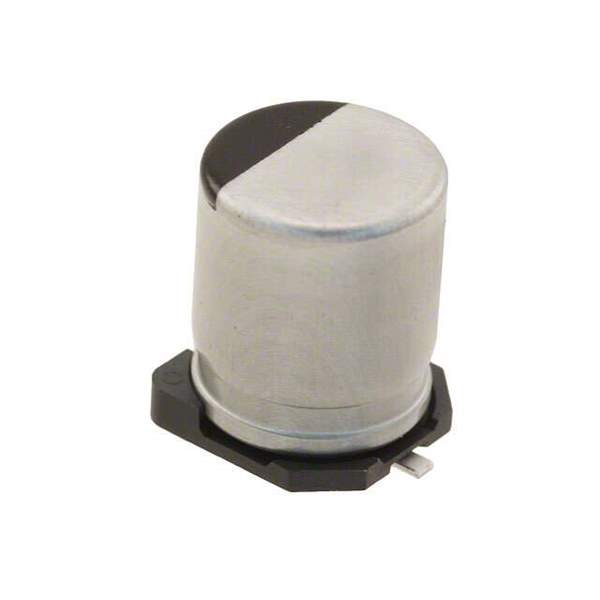

EEH-ZA1H680P Real Image EEH-ZA1H680P Real Image
Same model may have multiple batches, images only for reference.

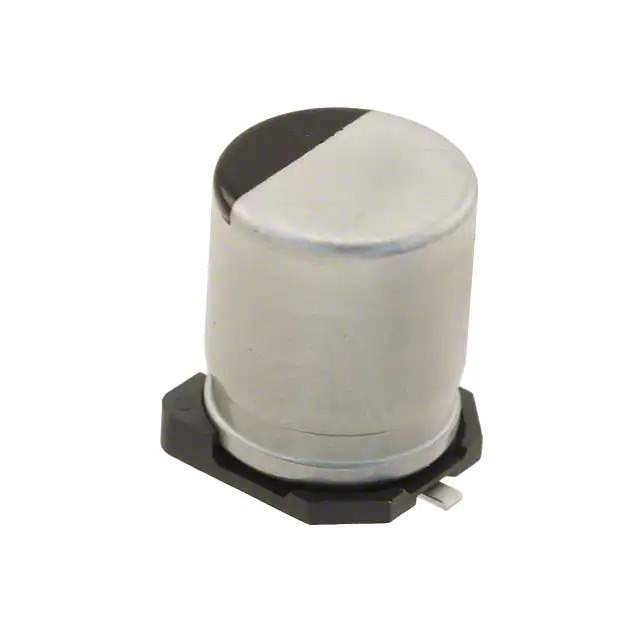

EEH-ZA1H680P Real Image EEH-ZA1H680P Real Image
EEH-ZA1H680P Real Image EEH-ZA1H680P Real Image
Same model may have multiple batches, images only for reference.

EEH-ZA1H680P

Part No EEH-ZA1H680P
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY HYB 68UF 50V SMD / 68 µF 50 V Aluminum - Polymer Capacitors Radial, Can - SMD 30mOhm 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series ZA
Package Tape & Reel
Type Hybrid
Capacitance 68 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) 30mOhm
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 270 mA @ 100 Hz
Ripple Current @ High Frequency 1.8 A @ 100 kHz
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number EEH-ZA
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1338777-EEH-ZA1H680P
Ultra Librarian 3D Model Ultra Librarian EEH-ZA1H680P CAD Model

Description

This aluminum polymer capacitor from Panasonic Electronic Components is a reliable and efficient component for automotive applications. With a capacitance of 68 µF and a voltage rating of 50 V, it boasts a tolerance of ±20% and an ESR of 30mOhm.

  • Application: Automotive
  • Capacitance: 68 µF
  • Voltage Rating: 50 V
  • Tolerance: ±20%
  • ESR: 30mOhm
  • Type: Hybrid
  • Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Package/Case: Radial, Can - SMD
  • Temperature Range: -55°C to 105°C
  • Lifetime: 10000 Hrs @ 105°C
  • AEC-Q200: Yes
  • Packaging: Tape and Reel
  • Standard Package: 500
