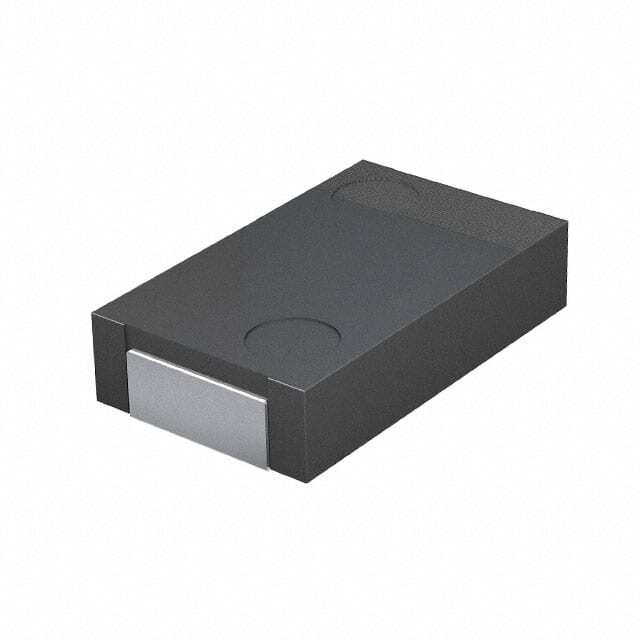

Same model may have multiple batches, images only for reference.

EEF-LR0D221R4

Name: EEF-LR0D221R4
Brand: Panasonic
SKU: 849439
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEF-LR0D221R4
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 220UF 20% 2V SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum - Polymer Capacitors
Mfr	Panasonic
Series	SP-Cap, LR
Package	Tape & Reel
Product Status	Active
Type	Polymer
Capacitance	220 µF
Tolerance	±20%
Voltage - Rated	2 V
ESR (Equivalent Series Resistance)	4.5mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Applications	General Purpose
Ripple Current @ High Frequency	8.5 A @ 100 kHz
Size / Dimension	0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max)	0.039" (1.00mm)
Surface Mount Land Size	0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type	Surface Mount
Package / Case	2917 (7343 Metric)
Base Product Number	EEF-LR
Standard Package	3,500 pcs
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	849439-EEF-LR0D221R4
Ultra Librarian 3D Model	Ultra Librarian EEF-LR0D221R4 CAD Model

Description

The EEF-LR0D221R4 is a polymer capacitor from Panasonic's SP-Cap, LR series.

Series: SP-Cap, LR
Capacitance: 220μF
Tolerance: ±20%
Voltage Rating: 2V
Equivalent Series Resistance (ESR): 4.5mOhm
Mounting Type: Surface Mountable
Package Size: 2917 (7343 Metric)
Application: General Purpose
Operating Temperature Range: -55°C to 105°C
Lifetime: 2000 hours @ 105°C
Standard Package: 3,500 pcs
