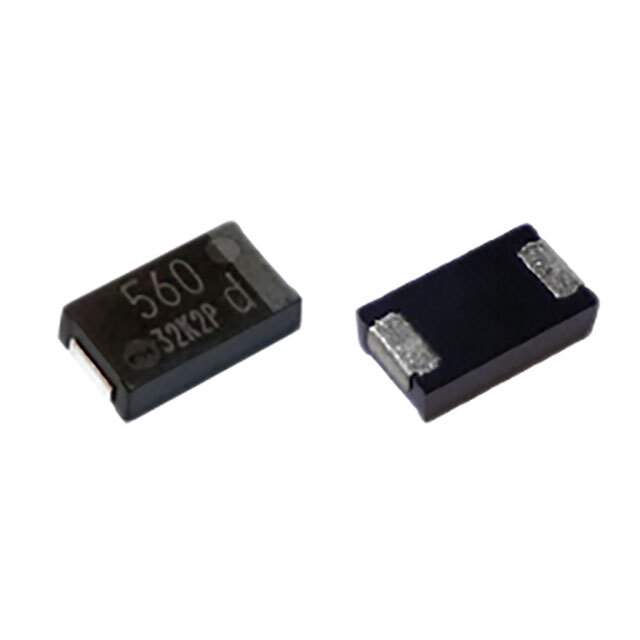

Same model may have multiple batches, images only for reference.

EEF-HX0E331R4

Name: EEF-HX0E331R4
Brand: Panasonic
SKU: 992300
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEF-HX0E331R4
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 330UF 20% 2.5V SMD / 330 µF 2.5 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 4.5mOhm 1000 Hrs @ 125°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	SP-Cap HX
Package	Tape & Reel
Type	Polymer
Capacitance	330 µF
Tolerance	±20%
Voltage - Rated	2.5 V
ESR (Equivalent Series Resistance)	4.5mOhm
Lifetime @ Temp.	1000 Hrs @ 125°C
Temperature Range - Operating	-55°C ~ 125°C
Applications	General Purpose
Ripple Current @ High Frequency	8.5 A @ 100 kHz
Dimension	0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max)	0.079" (2.00mm)
Surface Mount Land Size	0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting	SMD (SMT)
Package / Case	2917 (7343 Metric)
Base Product Number	EEF-HX
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	10-EEF-HX0E331R4TR,10-EEF-HX0E331R4DKR,EEF-HX0E331R4-ND,EEFHX0E331R4,10-EEF-HX0E331R4CT
Standard Package	3,500
Win Source Part Number	992300-EEF-HX0E331R4
Ultra Librarian 3D Model	Ultra Librarian EEF-HX0E331R4 CAD Model

Description

The Panasonic Electronic Components 992300-EEF-HX0E331R4 is a 330 µF polymer capacitor with a voltage rating of 2.5 V and a tolerance of ±20%.

Capacitance: 330 µF
Voltage Rating: 2.5 V
Tolerance: ±20%
ESR (Equivalent Series Resistance): 4.5mOhm
Ripple Current @ High Frequency: 8.5 A @ 100 kHz
Mounting Style: SMD (SMT)
Height: 0.079" (2.00mm)
Package/Case: 2917 (7343 Metric)
Temperature Range: -55°C ~ 125°C
Lifetime: 1000 Hrs @ 125°C
MSL Level: Not Applicable
REACH Status: Unaffected
