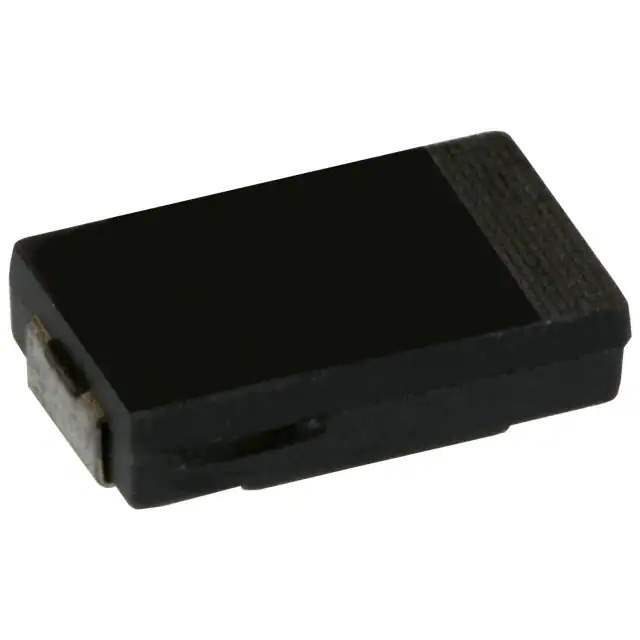

EEF-CD0G820XR Real Image
Same model may have multiple batches, images only for reference.

EEF-CD0G820XR

Part No EEF-CD0G820XR
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 82UF 20% 4V SMD / 82 μF 4 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 15mOhm 1000 Hrs @ 105°C
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic
Series SP-Cap CD
Package Tape & Reel
Product Status Obsolete
Type Polymer
Capacitance 82 µF
Tolerance ±20%
Voltage - Rated 4 V
ESR (Equivalent Series Resistance) 15mOhm
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Applications General Purpose
Size / Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.075" (1.90mm)
Surface Mount Land Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type Surface Mount
Package / Case 2917 (7343 Metric)
Base Product Number EEF-CD
Standard Package 3,500 pcs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 917880-EEF-CD0G820XR
Ultra Librarian 3D Model Ultra Librarian EEF-CD0G820XR CAD Model

Description

The Panasonic SP-Cap CD series capacitor is a polymer capacitor with a capacitance of 82 µF and a voltage rating of 4V.

  • Manufacturer: Panasonic
  • Capacitance: 82 µF
  • Voltage Rating: 4V
  • Application: general-purpose applications
  • Tolerance: ±20%
  • Size: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Height: 0.075" (1.90mm) when seated
  • Mounting Type: surface mountable
  • Package: 2917 (7343 Metric)
  • ESR: 15mOhm
  • Lifetime: 1000 hours @ 105°C
  • Base Product Number: EEF-CD
  • Status: obsolete
  • Moisture Sensitivity Level: 3 (168 Hours)
