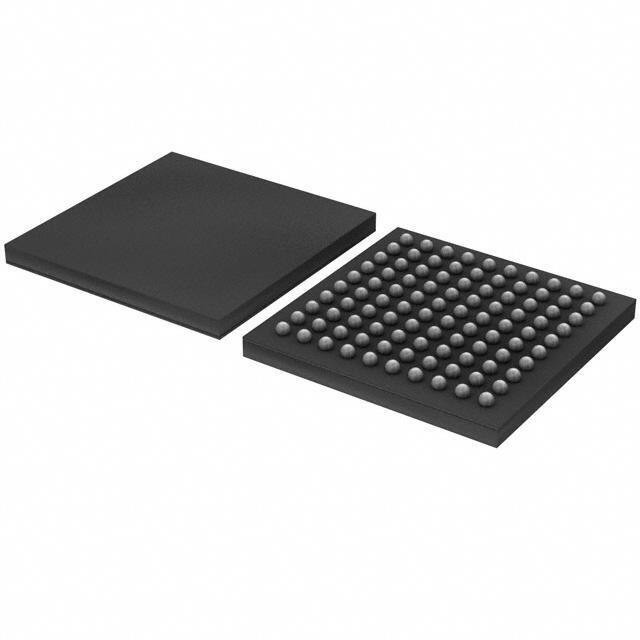

The NXP LPC1765FET100 is a high-performance microcontroller that is part of the LPC1700 series, designed for embedded applications requiring a blend of power efficiency, performance, and advanced peripherals. This microcontroller is based on a 32-bit ARM Cortex-M3 processor core, which operates at frequencies of up to 100 MHz, providing a solid foundation for embedded systems that require reliable and efficient processing capabilities.

Core Features

• CPU: 32-bit ARM Cortex-M3 processor, running up to 100 MHz.
• Memory: 256 KB of on-chip flash memory and 64 KB of SRAM, allowing for robust application development.
• Timers: Multiple 32-bit timers, a Real-Time Clock, and a PWM unit for comprehensive timing solutions.
• Communication Interfaces: Includes Ethernet MAC, USB Device/Host/OTG, CAN, and multiple serial interfaces such as UART, I2C, SPI, and SSP for versatile connectivity options.
• ADC & DAC: Integrated 12-bit Analog-to-Digital Converter and 10-bit Digital-to-Analog Converter for interfacing with analog signals.

Advanced Peripherals

The LPC1765FET100 is equipped with a range of peripherals that enhance its functionality for complex tasks. It includes an Ethernet MAC for networking capabilities, a USB interface supporting both host and device modes, and CAN 2.0B for automotive and industrial applications. The inclusion of multiple serial communication interfaces makes this microcontroller highly adaptable to various communication requirements.

Power Efficiency

Designed with power efficiency in mind, the LPC1765FET100 features three reduced power modes: Sleep, Deep-sleep, and Power-down mode. These modes enable the microcontroller to conserve power when full operation is not required, making it ideal for battery-powered and power-sensitive applications.

Development Support

NXP supports the LPC1765FET100 with an extensive ecosystem of development tools and software, including IDEs, middleware libraries, and sample code. This support helps to accelerate the development process and reduce time to market for products utilizing this microcontroller.

Applications

The LPC1765FET100 is suitable for a wide range of applications, such as industrial control systems, networking, medical devices, eMetering, and alarm systems, to name a few. Its combination of processing power, memory, and peripherals makes it a versatile choice for designers looking to balance performance with cost-effectiveness.
