Same model may have multiple batches, images only for reference.

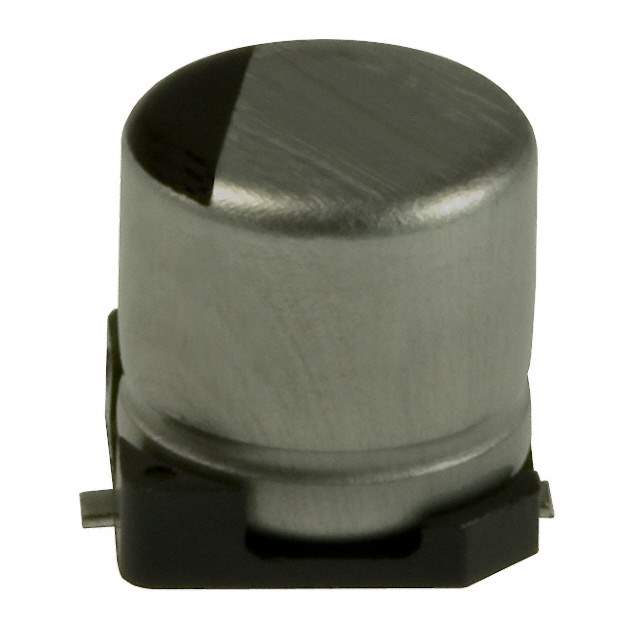

EEE1VA100SR Real Image
Same model may have multiple batches, images only for reference.

EEE1VA100SR

Part No EEE1VA100SR
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description Aluminum Electrolytic Capacitor, 10 uF, 35 V, ± 20%, 2000 hours @ 85°C, Radial Can - SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 10 µF
Case / Package Radial
Contact Plating Tin
Diameter 5 mm
Height 5.4 mm
Height - Seated (Max) 5.4102 mm
Lead Free Lead Free
Lead Length 2.2 mm
Lead Pitch 1.5 mm
Leakage Current 3 µA
Length 5.5 mm
Life (Hours) 2000 hours
Max Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount PCB, Surface Mount
Number of Pins 2
Packaging Cut Tape
Radiation Hardening No
REACH SVHC No SVHC
Ripple Current 30 mA
Ripple Current (AC) 30 mA
RoHS Compliant
Schedule B 8532220020
Termination SMD/SMT
Tolerance 20 %
Voltage 35 V
Voltage Rating 35 V
Voltage Rating (AC) 35 V
Voltage Rating (DC) 35 V
Width 5.3 mm
Win Source Part Number 1185658-EEE1VA100SR
Categories Aluminum Capacitors
Manufacturer Panasonic
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian EEE1VA100SR CAD Model

Description

The Panasonic 1185658-EEE1VA100SR is a cut tape aluminum capacitor with a capacitance of 10 µF and a voltage rating of 35 V.

  • Capacitance: 10 µF
  • Voltage Rating: 35 V
  • Mounting Type: SMD/SMT
  • Tolerance: 20%
  • Leakage Current: 3 µA
  • Ripple Current: 30 mA
  • Height: 5.4 mm
  • Contact Plating: Tin
  • Supply and Demand Status: Limited
  • Lead-Free: Yes
  • RoHS Compliant: Yes
