Same model may have multiple batches, images only for reference.

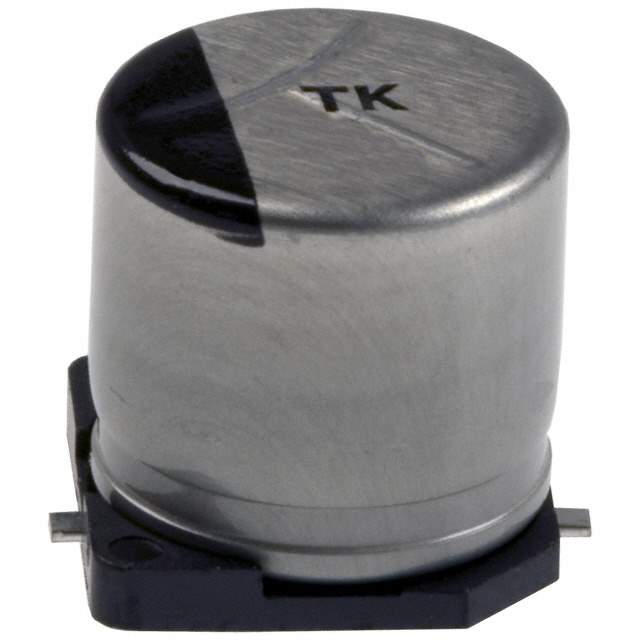

EEE-TPV470XAP Real Image
Same model may have multiple batches, images only for reference.

EEE-TPV470XAP

Part No EEE-TPV470XAP
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 35V SMD / 47 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 2000 Hrs @ 125°C
Temperature Range - Operating -40°C ~ 125°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive, High Temperature Reflow
Ripple Current @ Low Frequency 128.1 mA @ 120 Hz
Ripple Current @ High Frequency 197 mA @ 100 kHz
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.303" (7.70mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
Base Product Number EEE-TPV
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number PCE4932CT,PCE4932TR,PCE4932DKR,EEETPV470XAP
Standard Package 900
Win Source Part Number 1328529-EEE-TPV470XAP
Ultra Librarian 3D Model Ultra Librarian EEE-TPV470XAP CAD Model

Description

The EEE-TPV470XAP from Panasonic Electronic Components is a surface mount aluminum electrolytic capacitor with a capacitance of 47µF and a voltage rating of 35V.

  • Capacitance: 47µF
  • Voltage Rating: 35V
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 128.1 mA @ 120 Hz
  • Ripple Current (High Frequency): 197 mA @ 100 kHz
  • Package: Radial, Can - SMD
  • Operating Temperature Range: -40°C to 125°C
  • Lifetime: 2000 hours @ 125°C
  • AEC-Q200 Rated: Yes
  • ROHS3 Compliant: Yes
  • REACH: Unaffected
  • Applications: Automotive and High-Temperature Reflow
