Same model may have multiple batches, images only for reference.

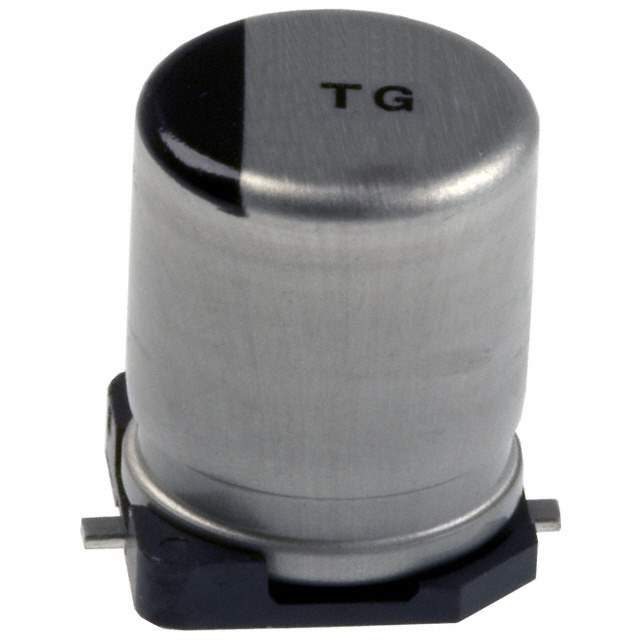

EEE-TG1V470P Real Image
Same model may have multiple batches, images only for reference.

EEE-TG1V470P

Part No EEE-TG1V470P
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 35V SMD / 47 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 500mOhm @ 100kHz 2000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series TG
Package Tape & Reel
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) 500mOhm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 125°C
Temperature Range - Operating -40°C ~ 125°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 128.1 mA @ 120 Hz
Ripple Current @ High Frequency 197 mA @ 100 kHz
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.402" (10.20mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number EEE-TG
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1341276-EEE-TG1V470P
Ultra Librarian 3D Model Ultra Librarian EEE-TG1V470P CAD Model

Description

The Panasonic Electronic Components EEE-TG1V470P is an aluminum electrolytic capacitor in the radial, can - SMD package.

  • Type: Aluminum electrolytic capacitor
  • Package: Radial, can - SMD
  • Capacitance: 47 µF
  • Voltage Rating: 35V
  • Tolerance: ±20%
  • Series: TG, automotive AEC-Q200 compliance
  • ESR: 500 mOhm @ 100kHz
  • Lifetime @ Temp: 2000 hrs @ 125°C
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Packaging: Tape and reel
  • Operating Temperature: -40°C to 125°C
  • MSL Level: 1 (unlimited)
  • HTSUS: 8532.22.0020
