Same model may have multiple batches, images only for reference.

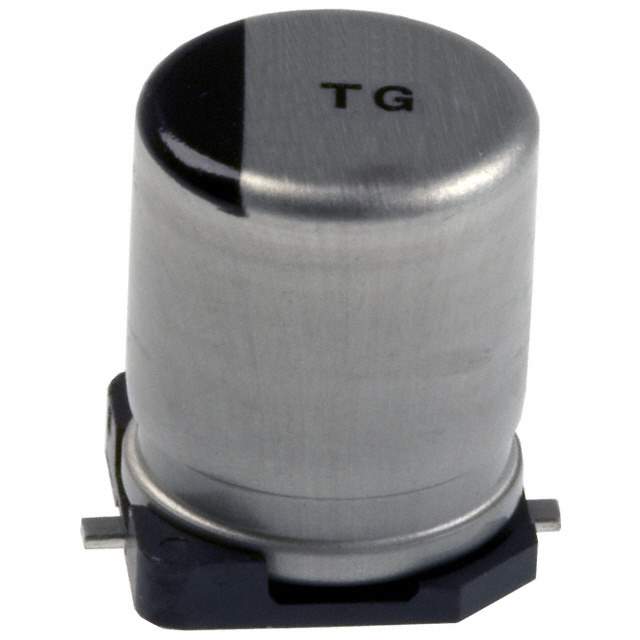

EEE-TG1A331UP Real Image
Same model may have multiple batches, images only for reference.

EEE-TG1A331UP

Part No EEE-TG1A331UP
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 10V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series Automotive, AEC-Q200, TG
Capacitance 330μF
Tolerance ±20%
Voltage Rating 10V
ESR (Equivalent Series Resistance) 500 mOhm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 125°C
Operating Temperature Range -40°C ~ 125°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 128.1mA @ 120Hz
Ripple Current - High Frequency 197mA @ 100kHz
Dimension 0.315" Dia (8.00mm)
Height - Seated (Maximum) 0.402" (10.20mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 763529-EEE-TG1A331UP
Popularity Medium
Supply and Demand Status Limited
Quantity per package 500
Family Name TG
Introduction Date July 04, 2004
ECCN EAR99
Country of Origin Japan, Malaysia
Halogen Free Unknown
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian EEE-TG1A331UP CAD Model

Description

The Panasonic Electronic Components Capacitor is a high-quality electronic component.

  • Series: TG (Automotive)
  • Capacitance: 330μF
  • Voltage Rating: 10V
  • Package: Radial Can - SMD
  • Polarization: Polarized
  • Tolerance: ±20%
  • ESR: 500 mOhm @ 100kHz
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Ripple Current (Low Frequency): 128.1mA @ 120Hz
  • Ripple Current (High Frequency): 197mA @ 100kHz
  • Height: 0.402" (10.20mm)
  • Estimated EOL Date: 2026
  • Manufacturing: Japan, Malaysia
  • Supply and Demand Status: Limited
  • Package: 500
