Same model may have multiple batches, images only for reference.

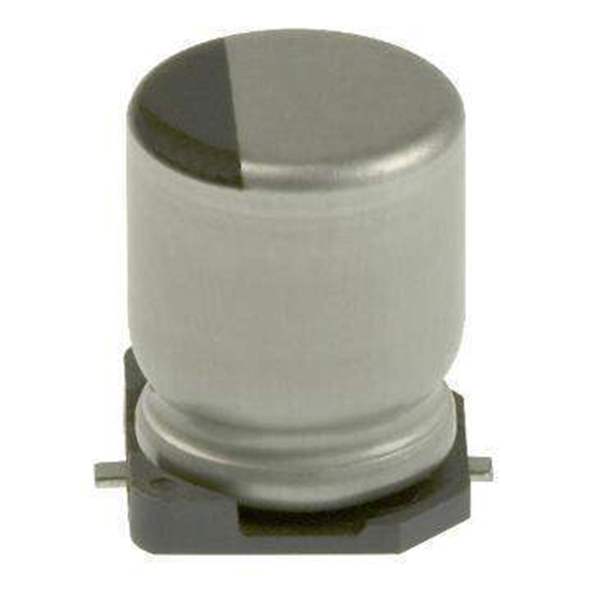

EEE-HD2A220P

Name: EEE-HD2A220P
Brand: Panasonic
SKU: WS1307665
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EEE-HD2A220P
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 100V SMD
Datasheet	EEE-HD2A220P Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Panasonic Electronic Components
Category	Capacitors Aluminum Electrolytic Capacitors
Part Status	Active
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	100 V
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ripple Current @ Low Frequency	70 mA @ 120 Hz
Ripple Current @ High Frequency	119 mA @ 10 kHz
Impedance	800 mOhms
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.402" (10.20mm)
Win Source Part Number	WS1307665-EEE-HD2A220P
Ultra Librarian 3D Model	Ultra Librarian EEE-HD2A220P CAD Model

Alternative Products

Description

22 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
