Same model may have multiple batches, images only for reference.

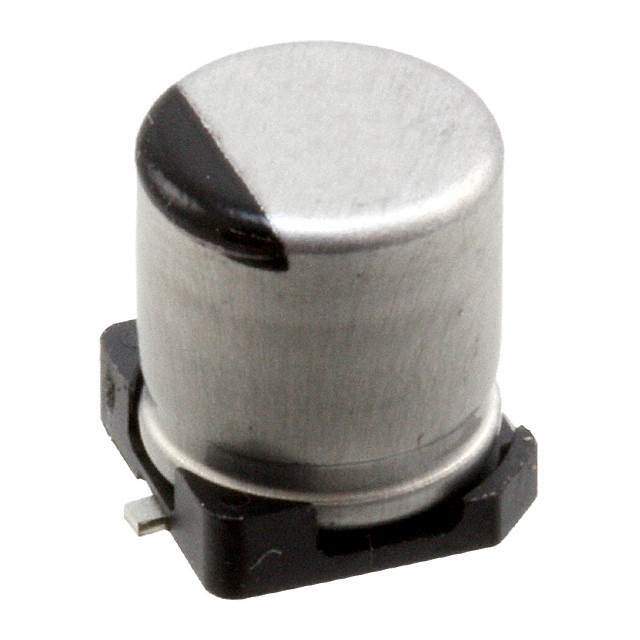

EEE-HD1C220AR Real Image
Same model may have multiple batches, images only for reference.

EEE-HD1C220AR

Part No EEE-HD1C220AR
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 16V SMD / 22 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series HD
Package Tape & Reel
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive, High Temperature Reflow
Ripple Current @ Low Frequency 39 mA @ 120 Hz
Ripple Current @ High Frequency 66.3 mA @ 10 kHz
Impedance 7.2 Ohms
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.228" (5.80mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number EEE-HD
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1341483-EEE-HD1C220AR
Ultra Librarian 3D Model Ultra Librarian EEE-HD1C220AR CAD Model

Description

The Panasonic EEE-HD1C220AR capacitor is a high-quality aluminum electrolytic capacitor.

  • Capacitance: 22 μF
  • Voltage Rating: 16 V
  • Series: HD
  • Application: Automotive and high-temperature reflow
  • Package: Surface mount
  • Mounting: Tape and reel
  • Standard Package: 1,000
  • AEC-Q200: Rated
  • Impedance: 7.2 Ohms
  • Lifetime: 5000 hours @ 105°C
  • Polarized: Yes
  • Surface Mount Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
  • Package/Case: Radial, can - SMD
  • Operating Temperature: -40°C to 105°C
