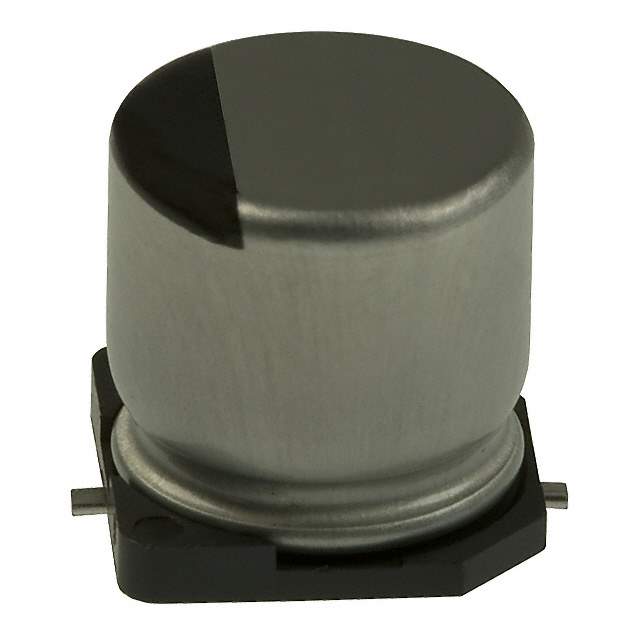

EEE-HAE101XAP Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series HA
Package Tape & Reel
Product Status Not For New Designs
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 91 mA @ 120 Hz
Ripple Current @ High Frequency 154.7 mA @ 10 kHz
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.303" (7.70mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number EEE-HAE
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names PCE4706TR,PCE4706CT,EEEHAE101XAP,PCE4706DKR
Standard Package 900
Win Source Part Number 1056867-EEE-HAE101XAP
Ultra Librarian 3D Model Ultra Librarian EEE-HAE101XAP CAD Model

Description

The Panasonic EEE-HAE101XAP is an aluminum electrolytic capacitor with a capacitance of 100 µF and a voltage rating of 25 V.

  • Manufacturer: Panasonic
  • Capacitance: 100 µF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • Polarized: Yes
  • Series: HA
  • Automotive Grade: AEC-Q200
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Height: 0.303" (7.70mm)
  • ESR: Not Specified
  • Lifetime @ Temperature: 1000 Hrs @ 105°C
  • Package/Case: Radial, Can - SMD
  • Operating Temperature: -40°C ~ 105°C
  • Alternative Part Cross-Reference: MCESL25V107M6.3X7.7, UWZ1E101MCL1GS, EMVY250ADA101MF80GEEE-HAE101XAP
