Same model may have multiple batches, images only for reference.

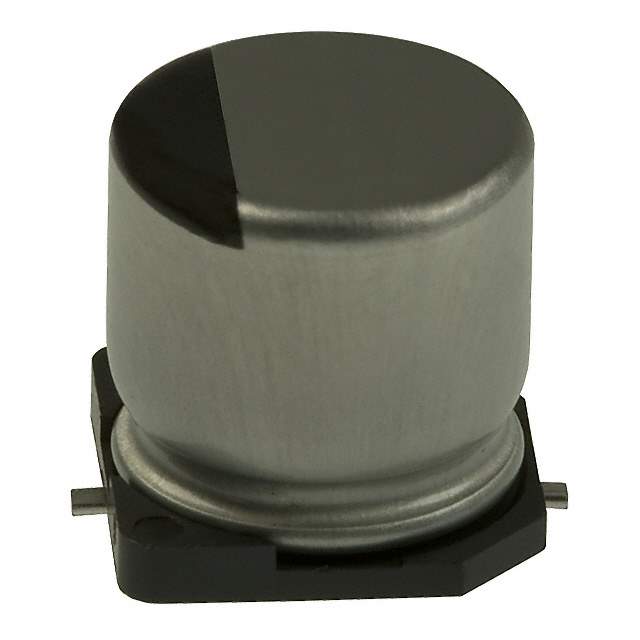

EEE-HA1V100WR Real Image
Same model may have multiple batches, images only for reference.

EEE-HA1V100WR

Part No EEE-HA1V100WR
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 35V SMD / 10 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Product Status Not For New Designs
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 22 mA @ 120 Hz
Ripple Current @ High Frequency 37.4 mA @ 10 kHz
Size / Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
Base Product Number EEE-HA
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number PCE4235CT,EEEHA1V100WR,PCE4235DKR,PCE4235TR
Standard Package 2,000
Win Source Part Number 1331378-EEE-HA1V100WR
Ultra Librarian 3D Model Ultra Librarian EEE-HA1V100WR CAD Model

Description

The Panasonic Electronic Components 1331378-EEE-HA1V100WR is a surface mount aluminum electrolytic capacitor with a capacitance of 10µF and a voltage rating of 35V. It has a tolerance of ±20% and is rated AEC-Q200. The device has a radial, can-SMD case/package and is mounted on a reel. It has a lifetime of 1000 hours at 105°C and a ripple current of 22mA at 120Hz and 37.4mA at 10kHz. The device is part of the Capacitors>Aluminum Electrolytic Capacitors category and is not for new designs.
