Same model may have multiple batches, images only for reference.

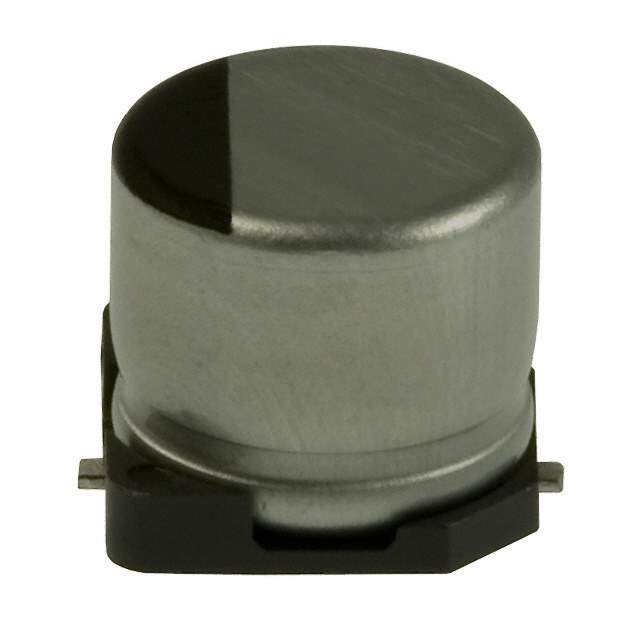

EEE-HA0J101WR Real Image
Same model may have multiple batches, images only for reference.

EEE-HA0J101WR

Part No EEE-HA0J101WR
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 6.3V SMD  /  100 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series HA
Package Tape & Reel
Product Status Not For New Designs
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 6.3 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 47 mA @ 120 Hz
Ripple Current @ High Frequency 79.9 mA @ 10 kHz
Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number EEE-HA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names EEEHA0J101WR,PCE4156CT,PCE4156TR,PCE4156DKR,Q4273740
Standard Package 1,000
Win Source Part Number 1133801-EEE-HA0J101WR
Ultra Librarian 3D Model Ultra Librarian EEE-HA0J101WR CAD Model

Description

This Panasonic Electronic Components aluminum electrolytic capacitor is a high-quality product that is ideal for use in a range of electronic devices.

  • Capacitance: 100 µF
  • Voltage Rating: 6.3 V
  • Package: Tape & Reel
  • Mounting: Surface Mountable
  • Tolerance: ±20%
  • Operating Temperature Range: -40°C to 105°C
  • Package/Case: Radial, Can - SMD
  • Surface Mount Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
  • Ripple Current @ Low Frequency: 47 mA @ 120 Hz
  • Ripple Current @ High Frequency: 79.9 mA @ 10 kHz
