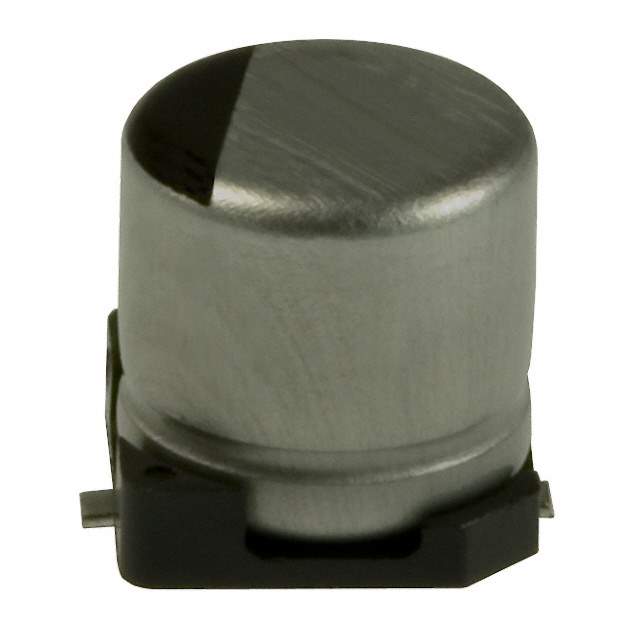

The Panasonic Electronic Components 1114843-EEE-1HA100WR is a radial, can SMD aluminum electrolytic capacitor with a capacitance of 10 µF and a voltage rating of 50 V.

• Capacitance: 10 µF
• Voltage Rating: 50 V
• Tolerance: ±20%
• Polarization: Polarized
• Series: EEE-1HA
• Application: Automotive
• ESR: -
• Ripple Current (Low Frequency): 27 mA @ 120 Hz
• Ripple Current (High Frequency): 45.9 mA @ 10 kHz
• Lifetime: 1000 Hrs @ 85°C
• AEC-Q200: Rated
• Surface Mount Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
• Height Seated (Max): 0.213" (5.40mm)
• Package: Tape and Reel
• Standard Package: 1000
• Status: Not for New Designs
