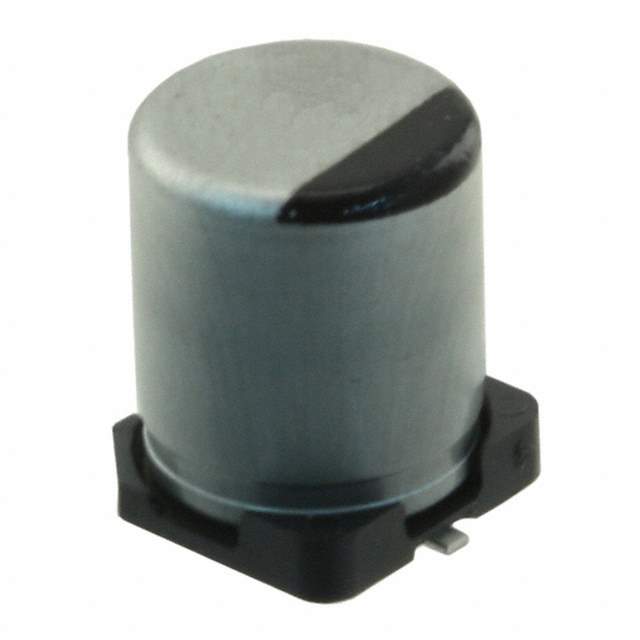

Same model may have multiple batches, images only for reference.

EEE-FTJ681XAP

Name: EEE-FTJ681XAP
Brand: Panasonic
SKU: 1337705
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEE-FTJ681XAP
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 680UF 20% 6.3V SMD / 680 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can - SMD 160mOhm @ 100kHz 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	FT
Package	Tape & Reel
Capacitance	680 µF
Tolerance	±20%
Voltage - Rated	6.3 V
ESR (Equivalent Series Resistance)	160mOhm @ 100kHz
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	420 mA @ 120 Hz
Ripple Current @ High Frequency	600 mA @ 100 kHz
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Base Product Number	EEE-FTJ
Standard Package	900
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1337705-EEE-FTJ681XAP
Ultra Librarian 3D Model	Ultra Librarian EEE-FTJ681XAP CAD Model

Description

This Panasonic Electronic Components FT series aluminum electrolytic capacitor is a polarized capacitor that is suitable for use in automotive applications.

Capacitance: 680 µF
Voltage Rating: 6.3V
Tolerance: ±20%
ESR: 160mOhm @ 100kHz
Lifetime: 2000 Hrs @ 105°C
Package: Tape & Reel
Mounting Type: Surface Mount
Temperature Range: -55°C to 105°C
Series: FT
Package/Case: Radial, Can - SMD
