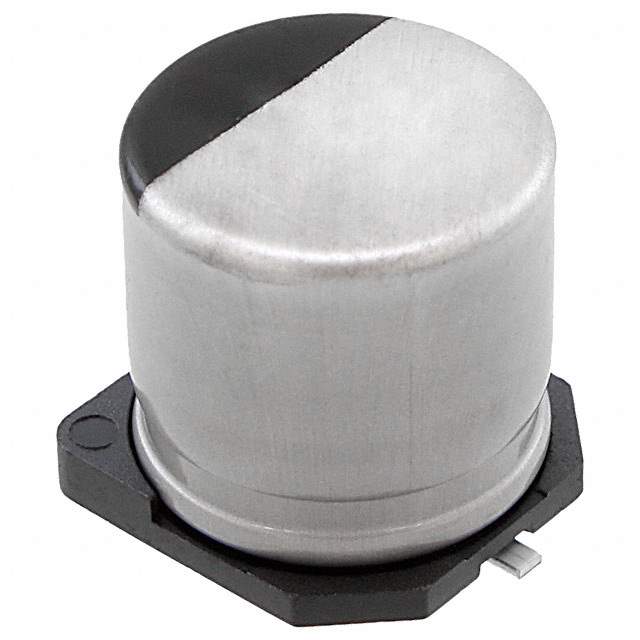

EEE-FT1V561GP Real Image
Same model may have multiple batches, images only for reference.

EEE-FT1V561GP

Part No EEE-FT1V561GP
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 560UF 20% 35V SMD / 560 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 60mOhm @ 100kHz 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series FT
Package Tape & Reel
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) 60mOhm @ 100kHz
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 833 mA @ 120 Hz
Ripple Current @ High Frequency 1.19 A @ 100 kHz
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number EEE-FT
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1338616-EEE-FT1V561GP
Ultra Librarian 3D Model Ultra Librarian EEE-FT1V561GP CAD Model

Description

The Panasonic Electronic Components Capacitor with Win Source Part Number 1338616-EEE-FT1V561GP is an electronic component used in aluminum electrolytic capacitors.

  • Series: FT
  • Package Type: Tape and Reel
  • Standard Package: 500
  • Capacitance: 560 µF
  • Tolerance: ±20%
  • Voltage Rated: 35 V
  • ESR (Equivalent Series Resistance): 60mOhm @ 100kHz
  • Lifetime @ Temp: 5000 Hrs @ 105°C
  • Polarization: Polar
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • Mounting Type: Surface Mount
  • Package/Case: Radial, Can - SMD
  • Operating Temperature Range: -55°C ~ 105°C
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH Unaffected
  • HTSUS: 8532.22.0020
