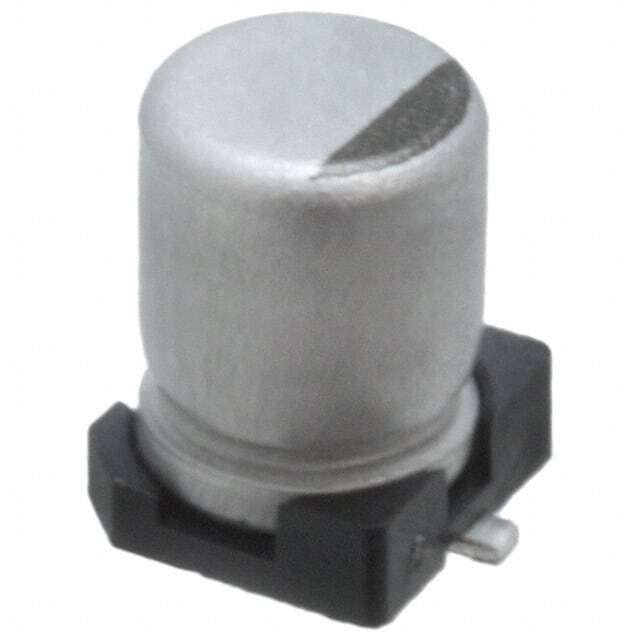

Same model may have multiple batches, images only for reference.

EEE-FT1E680AR

Name: EEE-FT1E680AR
Brand: Panasonic
SKU: 1307312
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEE-FT1E680AR
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	FT
Package	Tape & Reel
Capacitance	68 µF
Tolerance	±20%
Voltage - Rated	25 V
ESR (Equivalent Series Resistance)	360mOhm @ 100kHz
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	156 mA @ 120 Hz
Ripple Current @ High Frequency	240 mA @ 100 kHz
Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
Base Product Number	EEE-FT
Other Names	EEEFT1E680AR,PCE5006DKR,PCE5006TR,PCE5006CT
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1307312-EEE-FT1E680AR
Ultra Librarian 3D Model	Ultra Librarian EEE-FT1E680AR CAD Model

Description

The Panasonic Electronic Components EEE-FT series aluminum electrolytic capacitors are designed for automotive applications.

Manufacturer: Panasonic Electronic Components
Series: EEE-FT
Capacitance: 68 μF
Voltage Rating: 25 V
Tolerance: ±20%
ESR: 360 mOhm @ 100 kHz
Polarization: Polarized
Surface Mount Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
Package / Case: Radial, Can - SMD
Height: 0.240" (6.10mm)
Lifetime: 2000 Hrs @ 105°C
AEC-Q200: Yes
