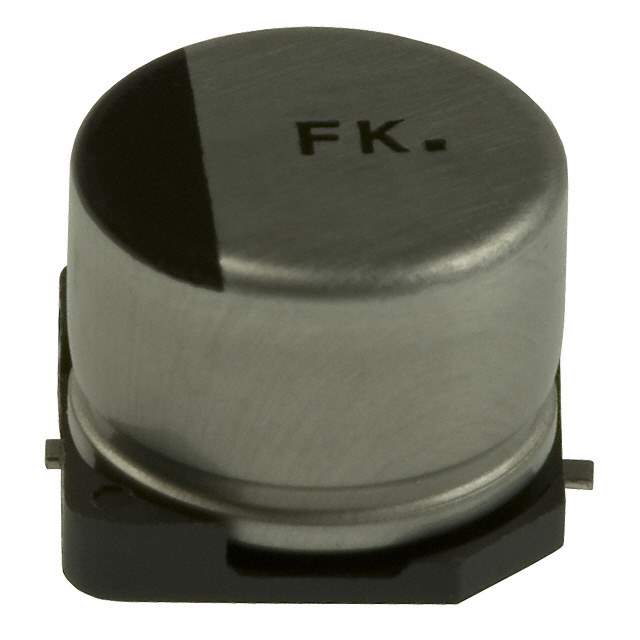

Same model may have multiple batches, images only for reference.

EEE-FK1K330P

Name: EEE-FK1K330P
Brand: Panasonic
SKU: 1000198
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EEE-FK1K330P
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 33UF 20% 80V SMD / 33 µF 80 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	FK
Package	Tape & Reel
Capacitance	33 µF
Tolerance	±20%
Voltage - Rated	80 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	97.5 mA @ 120 Hz
Ripple Current @ High Frequency	130 mA @ 100 kHz
Impedance	1.3 Ohms
Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
Base Product Number	EEE-FK
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	EEEFK1K330P,PCE3829DKR,PCE3829CT,PCE3829TR
Standard Package	500
Win Source Part Number	1000198-EEE-FK1K330P
Ultra Librarian 3D Model	Ultra Librarian EEE-FK1K330P CAD Model

Description

The FK series aluminum electrolytic capacitor from Panasonic Electronic Components is an ideal choice for automotive applications.

Capacitance: 33 µF
Voltage Rating: 80 V
Mounting Type: SMD (SMT) mounted
Rating: AEC-Q200
Impedance: 1.3 Ohms
Standard Package: 500
Model: EEE-FK1K330P
Lifetime: 2000 Hrs @ 105°C
Polarization: Polarized
Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
Package/Case: Radial, can - SMD
Temperature Range: -55°C ~ 105°C
Dimensions: 0.315" Dia (8.00mm)
ECCN: EAR99
REACH: REACH unaffected
Ripple Current @ Low Frequency: 97.5 mA @ 120 Hz
Ripple Current @ High Frequency: 130 mA @ 100 kHz
