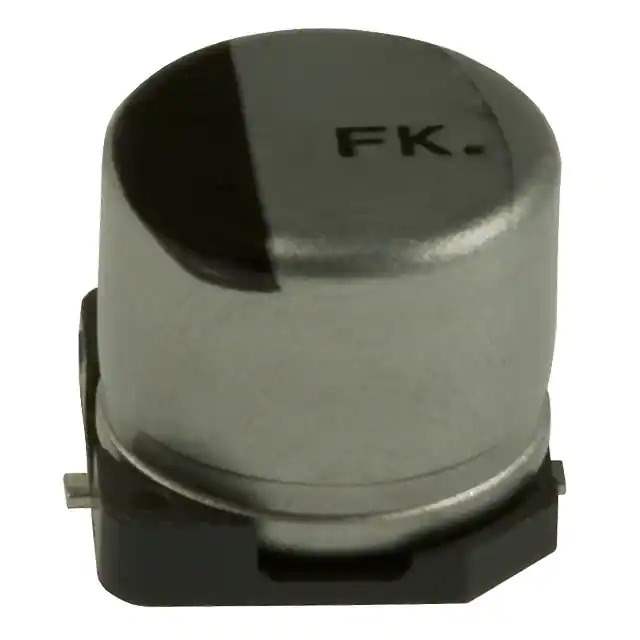

Same model may have multiple batches, images only for reference.

EEE-FK1H470XP

Name: EEE-FK1H470XP
Brand: Panasonic
SKU: 850280
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EEE-FK1H470XP
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 47UF 20% 50V SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Panasonic
Series	FK
Package	Tape & Reel
Product Status	Active
Capacitance	47 µF
Tolerance	±20%
Voltage - Rated	50 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	146.3 mA @ 120 Hz
Ripple Current @ High Frequency	195 mA @ 100 kHz
Impedance	680 mOhms
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Base Product Number	EEE-FK
Standard Package	900 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	850280-EEE-FK1H470XP
Ultra Librarian 3D Model	Ultra Librarian EEE-FK1H470XP CAD Model

Alternative Products

Description

The Panasonic 850280-EEE-FK1H470XP is an aluminum electrolytic capacitor designed for automotive applications.

Series: FK
Capacitance: 47 µF
Tolerance: ±20%
Voltage Rating: 50 V
Application: AEC-Q200 Rated
Mounting Type: Surface Mountable
Package Type: Radial, Can - SMD
Diameter: 0.248"
Height: 0.315"
Lifetime: 2000 hours @ 105°C
Operating Temperature: -55°C to 105°C
