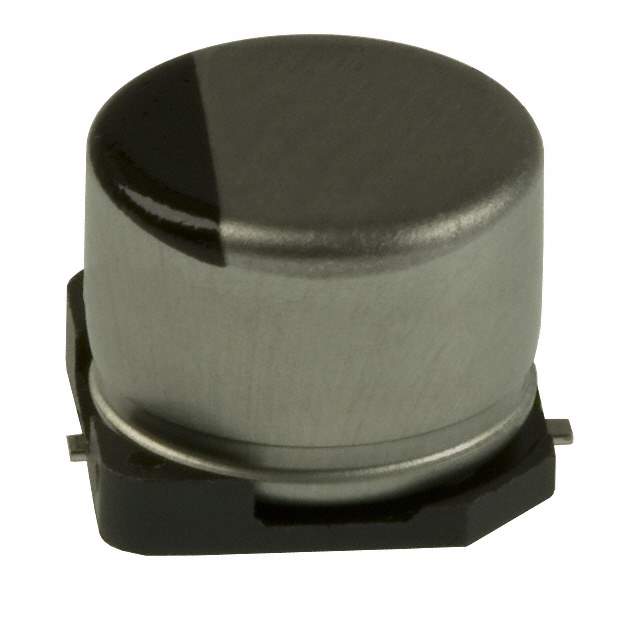

Same model may have multiple batches, images only for reference.

EEE-1HA330UP

Name: EEE-1HA330UP
Brand: Panasonic
SKU: 1331220
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEE-1HA330UP
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 33UF 20% 50V SMD / 33 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Manufacturer	Panasonic Electronic Components
Packaging	Reel - TR
Product Status	Not For New Designs
Capacitance	33 µF
Tolerance	±20%
Voltage - Rated	50 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	65 mA @ 120 Hz
Ripple Current @ High Frequency	110.5 mA @ 10 kHz
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.244" (6.20mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting	Surface Mount
Case / Package	Radial, Can - SMD
Base Product Number	EEE-1HA
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	PCE3924TR,PCE3924DKR,PCE3924CT,EEE1HA330UP
Standard Package	1,000
Win Source Part Number	1331220-EEE-1HA330UP
Ultra Librarian 3D Model	Ultra Librarian EEE-1HA330UP CAD Model

Description

The Panasonic Electronic Components EEE-1HA330UP is an aluminum electrolytic capacitor with a capacitance of 33 μF and a voltage rating of 50 V.

Manufacturer: Panasonic Electronic Components
Capacitance: 33 μF
Voltage Rating: 50 V
Polarization: Polarized
Case/Package: Radial, Can - SMD
Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
Temperature Range: -40°C ~ 85°C
Win Source Part Number: 1331220-EEE-1HA330UP
