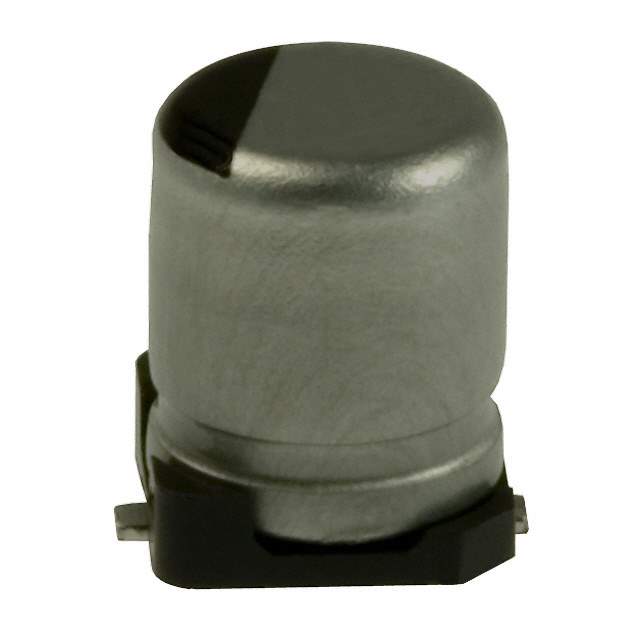

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Status Active
Capacitance 33μF
Tolerance ±20%
Voltage Rating 6.3V
Lifetime @ Temp. 1000 Hrs @ 85°C
Temperature Range - Operating -40°C to 85°C
Polarization Polar
Applications General Purpose
Ripple Current - Low Frequency 22mA @ 120Hz
Ripple Current - High Frequency 37.4mA @ 10kHz
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting SMD (SMT)
Dimension Radial, Can - SMD
Win Source Part Number 1005592-EEE-0JA330WAR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EEE-0JA330WAR CAD Model

Description

The Panasonic Electronic Components EEE-0JA330WAR is a 33μF, 6.3V, ±20% tolerance, SMD capacitor suitable for general purpose applications.

  • Capacitance: 33μF
  • Voltage: 6.3V
  • Tolerance: ±20%
  • Application: General Purpose
  • Dimension: Radial, Can - SMD
  • Land Size: 0.169" L x 0.169" W (4.30mm x 4.30mm)
  • Ripple Current - Low Frequency: 22mA @ 120Hz
  • Ripple Current - High Frequency: 37.4mA @ 10kHz
  • Temperature Range: -40°C to 85°C
