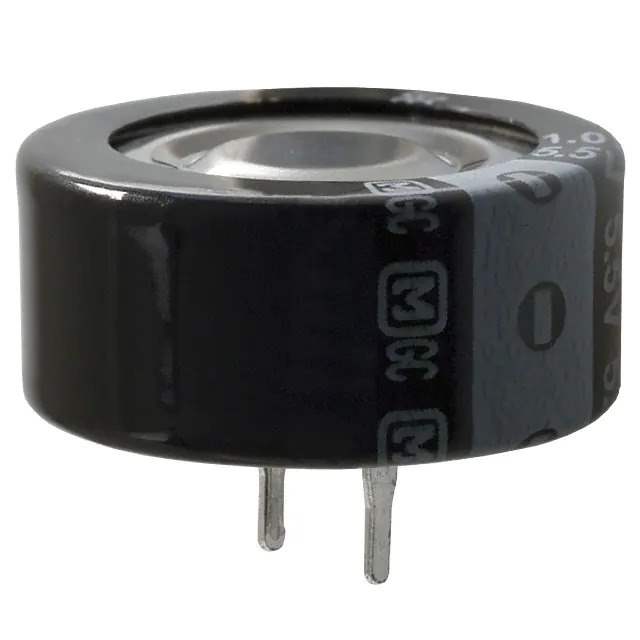

EEC-F5R5H105N Real Image
Same model may have multiple batches, images only for reference.

EEC-F5R5H105N

Part No EEC-F5R5H105N
Manufacturer Panasonic
Catalog Electric Double Layer Capacitors, Supercaps
Description CAP 1F -20% +80% 5.5V T/H
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr Panasonic
Series F
Package Tray
Product Status Obsolete
Capacitance 1 F
Tolerance -20%, +80%
Voltage - Rated 5.5 V
ESR (Equivalent Series Resistance) 50Ohm @ 1kHz
Lifetime @ Temp. 1000 Hrs @ 85°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Radial
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.846" Dia (21.50mm)
Height - Seated (Max) 0.374" (9.50mm)
Temperature Range - Operating -40°C ~ 85°C
Base Product Number EEC-F5
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 917843-EEC-F5R5H105N
Ultra Librarian 3D Model Ultra Librarian EEC-F5R5H105N CAD Model

Description

The Panasonic 917843-EEC-F5R5H105N is a high-quality electric double layer capacitor (EDLC), also known as a supercapacitor.

  • Series: F
  • Capacitance: 1 F
  • Capacitance Tolerance: -20% to +80%
  • Voltage Rating: 5.5 V
  • ESR: 50 Ohm @ 1 kHz
  • Lifetime: 1000 hours @ 85°C
  • Temperature Range: -40°C to 85°C
  • Mounting Type: Through-Hole
  • Termination Style: PC Pins
  • Package: Radial
  • Standard Package: 500 pcs
  • Diameter: 0.846"
  • Height: 0.374"
  • Manufacturer: Panasonic
