Same model may have multiple batches, images only for reference.

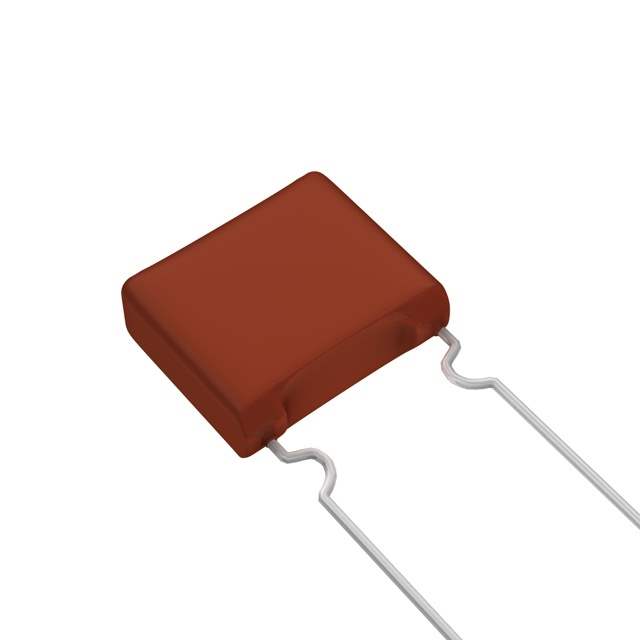

ECWF2105JAB Real Image
Same model may have multiple batches, images only for reference.

ECWF2105JAB

Part No ECWF2105JAB
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 1UF 5% 250VDC RADIAL
Datasheet
ECWF2105JAB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Bulk
Status Active
Capacitance 1μF
Tolerance ±5%
Voltage Rating - DC 250V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -40°C to 105°C
Mounting Through Hole
Dimension 0.713" L x 0.335" W (18.10mm x 8.50mm)
Height - Seated (Max) 0.780" (19.80mm)
Termination PC Pins
Lead Spacing 0.295" (7.50mm)
Applications High Frequency, Switching
Win Source Part Number 203524-ECWF2105JAB
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ECWF2105JAB CAD Model

Description

ECWF2105JAB Overview

The ECWF2105JAB is engineered for high-performance applications, offering excellent reliability and efficiency. It is a versatile component, suitable for a wide range of electronic projects that demand precision.

Applications

  • Audio Systems
  • Power Supplies
  • Smart Technology Devices
  • Renewable Energy Solutions
  • Networking Equipment

Features and Benefits

  • High Insulation Resistance
  • Low Loss Characteristics
  • Wide Capacitance Range
  • Robust Design for Long-term Usage
  • Optimized for Low Distortion

The ECWF2105JAB is a cost-effective solution offering superior functionality and reliability, making it an ideal choice for advanced electronic systems.
