Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.056μF
Tolerance ±5%
Voltage Rating - DC 400V
Temperature Range - Operating -55°C to 85°C
Mounting SMD (SMT)
Dimension 0.280" L x 0.248" W (7.10mm x 6.30mm)
Height - Seated (Max) 0.157" (4.00mm)
Termination Solder Pads
Applications DC Link, DC Filtering
Win Source Part Number 126375-ECW-U4563V17
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECW-U4563V17 CAD Model

Description

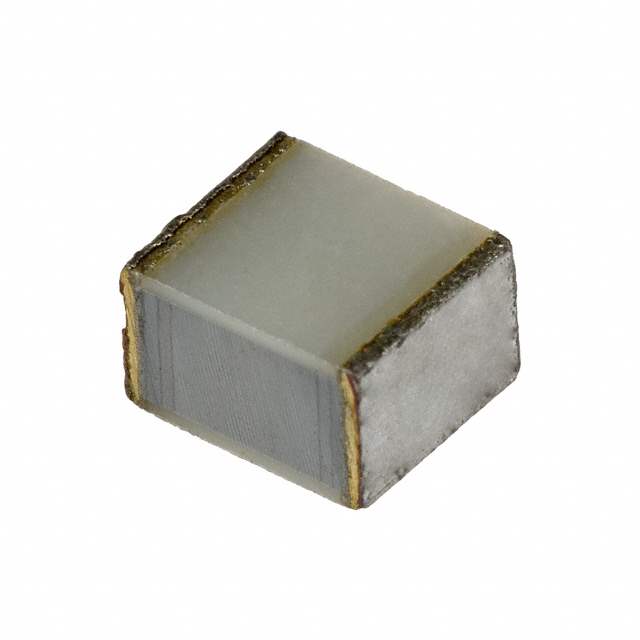

ECW-U4563V17 Metallized Polyester Film Capacitor

Optimized for performance and durability, the ECW-U4563V17 is a top choice for a wide range of electronic circuits that require a stable and reliable capacitor.

  • Superior Humidity Resistance: Ideal for use in environments where moisture is a concern, ensuring longevity and performance.
  • Stable Thermal Characteristics: Maintains performance over a wide temperature range, making it suitable for various temperature conditions.
  • High Capacitance Values: Offers a large range of capacitance, making it adaptable to diverse applications.

Applications:

  • Pulse circuits
  • AC to DC converters
  • Lighting circuits
  • Impulse discharge applications
