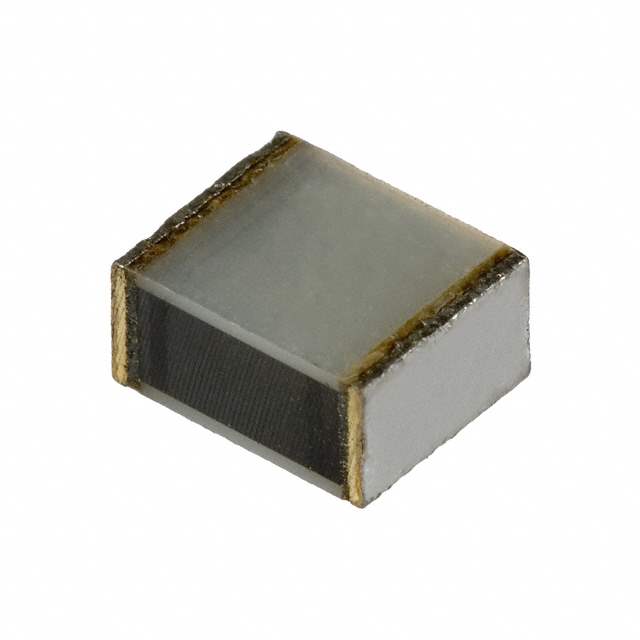

ECW-U2104V16 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.1μF
Tolerance ±5%
Voltage Rating - DC 250V
Temperature Range - Operating -55°C to 85°C
Mounting SMD (SMT)
Dimension 0.236" L x 0.197" W (6.00mm x 5.00mm)
Height - Seated (Max) 0.161" (4.10mm)
Termination Solder Pads
Applications High Frequency, Switching; High Pulse, DV/DT
Win Source Part Number 119012-ECW-U2104V16
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECW-U2104V16 CAD Model

Description

The ECW-U2104V16 is engineered for high-frequency applications, providing superior signal integrity and minimal distortion. Its design is optimized for use in advanced communication systems requiring reliable performance.

Features and Benefits:

  • High-Frequency Capability: Designed for applications involving high signal processing rates.
  • Signal Integrity: Minimizes signal loss and distortion.
  • Reliable Performance: Trusted for critical communication tasks.

Applications:

  • Advanced Communication Systems
  • Broadcast Equipment
  • RF Applications
