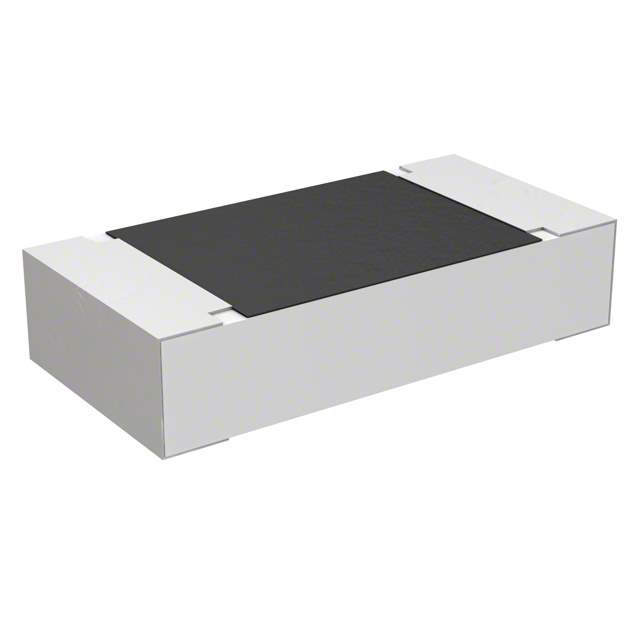

ERA-8AEB684V Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Panasonic Electronic Components
Series ERA-8A
Package Tape & Reel
Resistance 680 kOhms
Tolerance ±0.1%
Power (Watts) 0.25W, 1/4W
Composition Thin Film
Features Automotive AEC-Q200
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Ratings AEC-Q200
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
Base Product Number ERA-8AEB
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1342398-ERA-8AEB684V
Ultra Librarian 3D Model Ultra Librarian ERA-8AEB684V CAD Model

Description

The Panasonic ERA-8AEB684V is a high-quality thin film chip resistor designed for use in automotive applications.

  • Resistance: 680 kOhms
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Rating: AEC-Q200
  • Package / Case: 1206 (3216 Metric)
  • Standard Package: 5,000
  • REACH: Unaffected
  • Temperature Range: -55°C to 155°C
  • Mounting Type: Surface Mount
  • Number of Terminations: 2
  • Power (Watts): 0.25W
  • Application: Automotive
