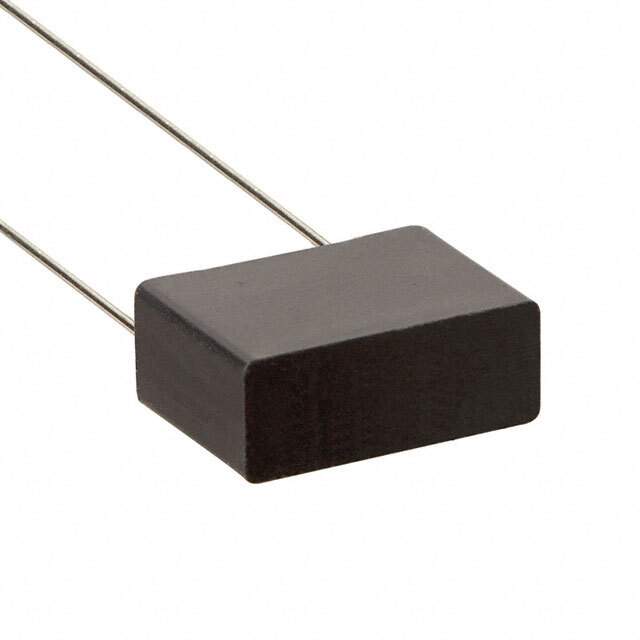

ECW-FE2J334J Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr Panasonic Electronic Components
Series ECWFE
Package Bulk
Capacitance 0.33 µF
Tolerance ±5%
Voltage Rating - AC 141V
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP) , Metallized
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.689" L x 0.335" W (17.50mm x 8.50mm)
Height - Seated (Max) 0.571" (14.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT
Base Product Number ECW-FE
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Win Source Part Number 1336762-ECW-FE2J334J
Ultra Librarian 3D Model Ultra Librarian ECW-FE2J334J CAD Model

Description

The ECW-FE2J334J is a film capacitor manufactured by Panasonic Electronic Components. Panasonic Electronic Components

  • Series: ECWFE
  • Termination: PC Pins
  • Package: Bulk
  • Standard Package: 1000
  • Voltage Rating (AC): 141V
  • Voltage Rating (DC): 630V
  • Size / Dimension: 0.689" L x 0.335" W (17.50mm x 8.50mm)
  • Height - Seated (Max): 0.571" (14.50mm)
  • Capacitance: 0.33 µF
  • Tolerance: ±5%
  • Lead Spacing: 0.591" (15.00mm)
  • Dielectric Material: Polypropylene (PP), Metallized
  • Mounting Type: Through Hole
  • Package / Case: Radial
  • Temperature Range: -40°C to 105°C
  • MSL Level: Not Applicable
  • REACH Status: REACH Unaffected
  • HTSUS Code: 8532.25.0070
  • Base Product Number: ECW-FE
