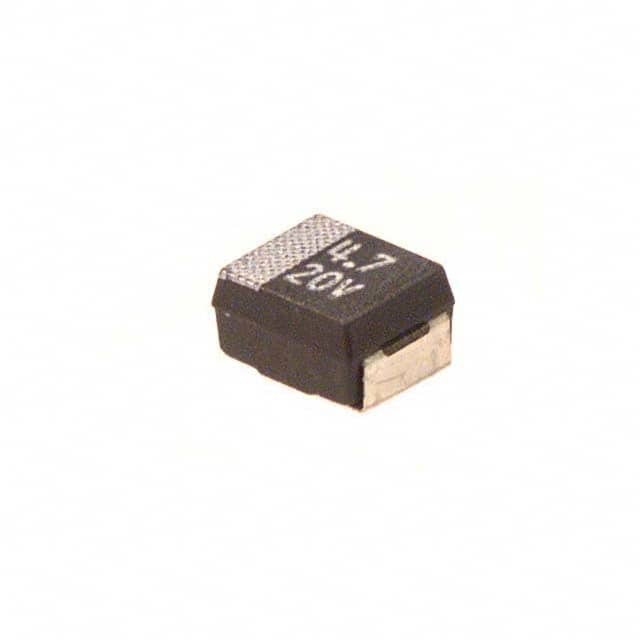

Same model may have multiple batches, images only for reference.
ECS-T1DX475R
Same model may have multiple batches, images only for reference.

ECS-T1DX475R

Part No ECS-T1DX475R
Manufacturer Panasonic
Catalog Tantalum Capacitors
Description CAP TANT 4.7UF 20% 20V 1411 / 4.7 μF Molded Tantalum Capacitors 20 V 1411 (3528 Metric)
Datasheet
ECS-T1DX475R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Tantalum Capacitors
Mfr Panasonic
Series TE
Package Tape & Reel
Product Status Obsolete
Capacitance 4.7 µF
Tolerance ±20%
Voltage - Rated 20 V
Type Molded
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Surface Mount
Package / Case 1411 (3528 Metric)
Size / Dimension 0.138" L x 0.110" W (3.50mm x 2.80mm)
Height - Seated (Max) 0.075" (1.90mm)
Manufacturer Size Code X
Features General Purpose
Base Product Number ECS-T1
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.21.0050
Win Source Part Number 870089-ECS-T1DX475R
Ultra Librarian 3D Model Ultra Librarian ECS-T1DX475R CAD Model

Description

The 870089-ECS-T1DX475R is a tantalum capacitor from Panasonic's TE series.

  • Manufacturer: Panasonic
  • Series: TE
  • Type: Tantalum Capacitor (Molded)
  • Capacitance: 4.7 μF
  • Voltage Rating: 20 V
  • Tolerance: ±20%
  • Mounting: Surface Mount
  • Size/Dimension: 0.138" L x 0.110" W (3.50mm x 2.80mm)
  • Seated Height: 0.075" (1.90mm)
  • Package/Case: 1411 (3528 Metric)
  • Operating Temperature: -55°C to 125°C
  • Category: Capacitors - Tantalum Capacitors
  • Status: Obsolete
  • ECCN: EAR99
  • HTSUS: 8532.21.0050
