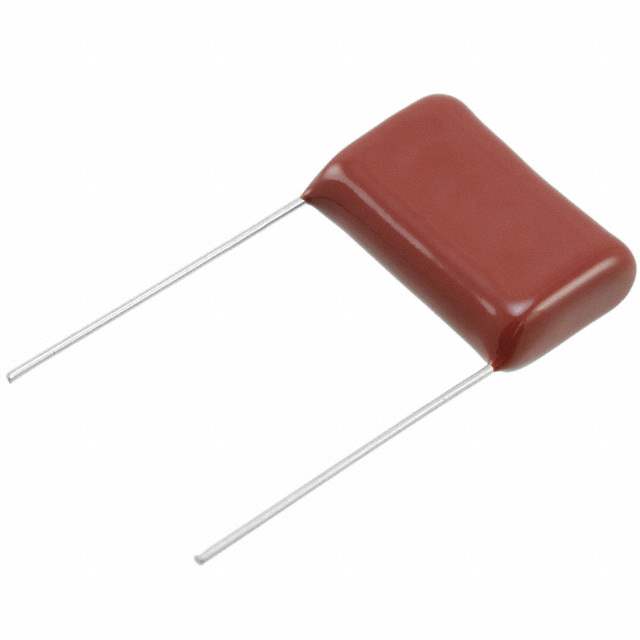

ECQ-E6474KF Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Bulk
Status Active
Capacitance 0.47μF
Tolerance ±10%
Voltage Rating - DC 630V
Dielectric Material Polyester, Metallized
Temperature Range - Operating -40°C to 105°C
Mounting Through Hole
Dimension 1.024" L x 0.366" W (26.00mm x 9.30mm)
Height - Seated (Max) 0.768" (19.50mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Applications General Purpose
Win Source Part Number 117398-ECQ-E6474KF
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial, Automotive, Power Management, Consumer Electronics, Portable Devices
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian ECQ-E6474KF CAD Model

Description

Product Overview

The ECQ-E6474KF film capacitor is specially designed to deliver high efficiency in electronic circuits, featuring advanced materials that ensure performance in critical applications.

Features and Benefits

  • High Voltage Rating: Suitable for circuits requiring higher voltage ratings and reliability.
  • Durable Construction: Built to withstand mechanical stresses and harsh environments.
  • Low ESR: Offers low equivalent series resistance for improved efficiency.
  • RoHS Compliant: Does not contain hazardous substances, adhering to environmental standards.

Applications

  • Voltage regulation circuits
  • Pulse circuits
  • Lighting control systems
  • Home appliances
