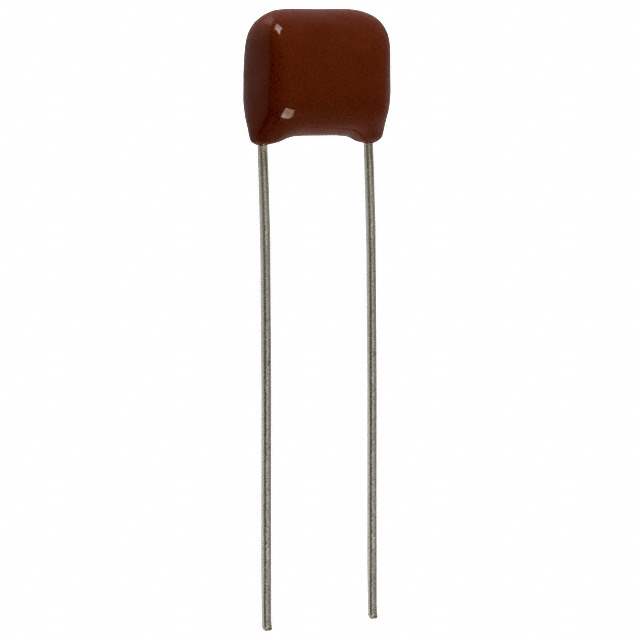

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Bulk
Status Obsolete(EOL)
Capacitance 0.47μF
Tolerance ±10%
Voltage Rating - DC 100V
Dielectric Material Polyester, Metallized
Temperature Range - Operating -40°C to 105°C
Mounting Through Hole
Dimension 0.406" L x 0.236" W (10.30mm x 6.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Termination PC Pins
Lead Spacing 0.295" (7.50mm)
Applications General Purpose
Win Source Part Number 116406-ECQ-E1474KF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECQ-E1474KF CAD Model

Description

Product Description

The ECQ-E1474KF stands out as a top-choice metallized polypropylene capacitor, favored for its ability to deliver outstanding performance in both fixed and variable electronic circuitry. Its construction is optimized for durability and stability, critical for advanced technology implementations.

Features and Benefits

  • High insulation resistance, reducing the risk of short circuits
  • Superior frequency and heat handling capabilities
  • Compact and lightweight design

Applications

  • Perfect for use in electronic ballasts and high-frequency circuits
  • Essential in power factor correction systems
  • Used in advanced RF applications for seamless communication
