Same model may have multiple batches, images only for reference.

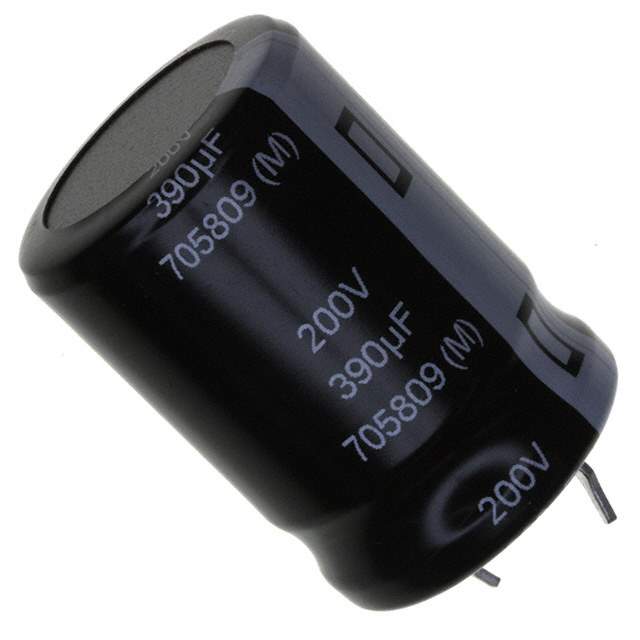

ECO-S2DP391BA Real Image
Same model may have multiple batches, images only for reference.

ECO-S2DP391BA

Part No ECO-S2DP391BA
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 390UF 20% 200V SNAP
Datasheet
ECO-S2DP391BA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Bulk
Status Obsolete(EOL)
Capacitance 390μF
Tolerance ±20%
Voltage Rating 200V
ESR 468 mOhm @ 120Hz
Lifetime @ Temp. 3000 Hrs @ 85°C
Temperature Range - Operating -40°C to 85°C
Polarization Polar
Applications General Purpose
Ripple Current - Low Frequency 1.68A @ 120Hz
Ripple Current - High Frequency 2.352A @ 100kHz
Lead Spacing 0.394" (10.00mm)
Height - Seated (Max) 1.181" (30.00mm)
Mounting Through Hole
Dimension Radial, Can - Snap-In
Win Source Part Number 1033930-ECO-S2DP391BA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECO-S2DP391BA CAD Model

Description

The Panasonic Electronic Components ECO-S2DP391BA is a 390μF, 200V, polarized aluminum electrolytic capacitor from Panasonic Electronic Components.

  • Capacitance: 390μF
  • Voltage: 200V
  • Type: Polarized Aluminum Electrolytic Capacitor
  • Mounting Type: Through-Hole
  • Lead Spacing: 0.394 inches (10.00mm)
  • Height: 1.181 inches (30.00mm)
  • Tolerance: ±20%
  • ESR: 468 mOhm @ 120Hz
  • Application: General Purpose
  • Temperature Range: -40°C to 85°C
  • Ripple Current: 1.68A @ 120Hz and 2.352A @ 100kHz
