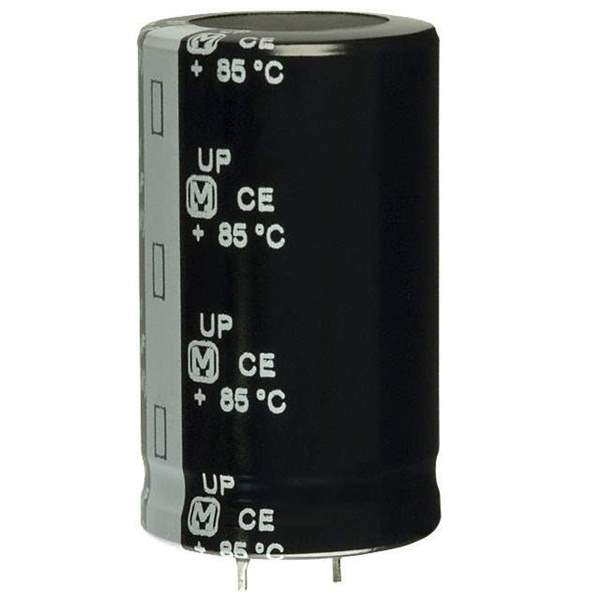

ECO-S2AP472DA Real Image
Same model may have multiple batches, images only for reference.

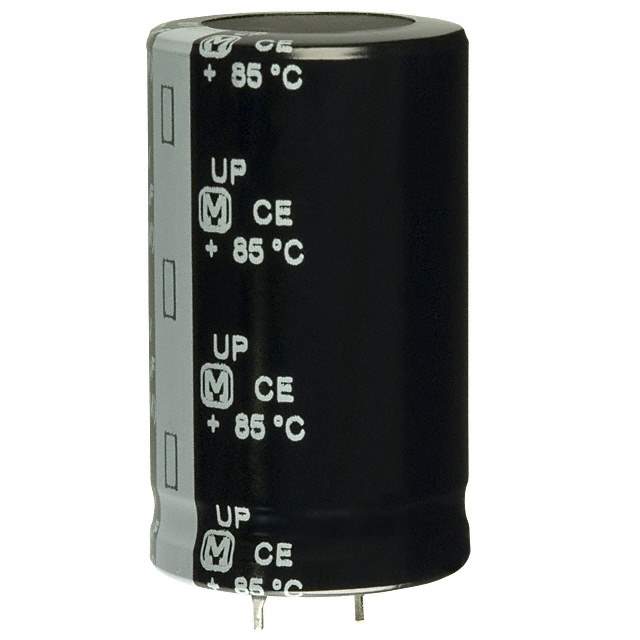

ECO-S2AP472DA

Part No ECO-S2AP472DA
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 4700UF 20% 100V SNAP / Cap Aluminum Lytic 4700uF 100V 20% (30 X 50mm) Snap-In 10mm 0.071 Ohm 5130mA 3000h 85°C Bulk
Datasheet
ECO-S2AP472DA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series TS-UP
Packaging Bulk
Part Status Obsolete(EOL)
Capacitance 4700μF
Tolerance ±20%
Voltage Rating 100V
ESR (Equivalent Series Resistance) 71 mOhm @ 120Hz
Lifetime @ Temp. 3000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 5.13A @ 120Hz
Ripple Current - High Frequency 5.9A @ 100kHz
Lead Spacing 0.394" (10.00mm)
Dimension 1.181" Dia (30.00mm)
Height - Seated (Maximum) 1.969" (50.00mm)
Mounting Style Through Hole
Package Radial, Can - Snap-In
Win Source Part Number 773647-ECO-S2AP472DA
Popularity Medium
Supply and Demand Status Limited
Family Name TS-UP
Introduction Date September 14, 2000
ECCN EAR99
Country of Origin Malaysia
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian ECO-S2AP472DA CAD Model

Description

The Panasonic Electronic Components ECO-S2AP472DA is a polarized snap-in capacitor with a capacitance of 4700μF and a tolerance of ±20%.

  • Voltage Rating: 100V
  • Applications: General
  • Lead Spacing: 0.394" (10.00mm)
  • Mounting: Through Hole
  • Status: Obsolete (EOL)
  • Supply: Limited
  • RoHS Compliant: Yes
  • ECCN: EAR99
  • Estimated EOL Date: Obsolete / End of Life
